Bar Railing Tall Upright Bracket

Bar Railing Tall Upright Bracket

Regular price £42.64 GBP
Regular price Sale price £42.64 GBP
Sale Sold out
Shipping calculated at checkout.
Diameter
Finish: Polished Brass

Part no:21174

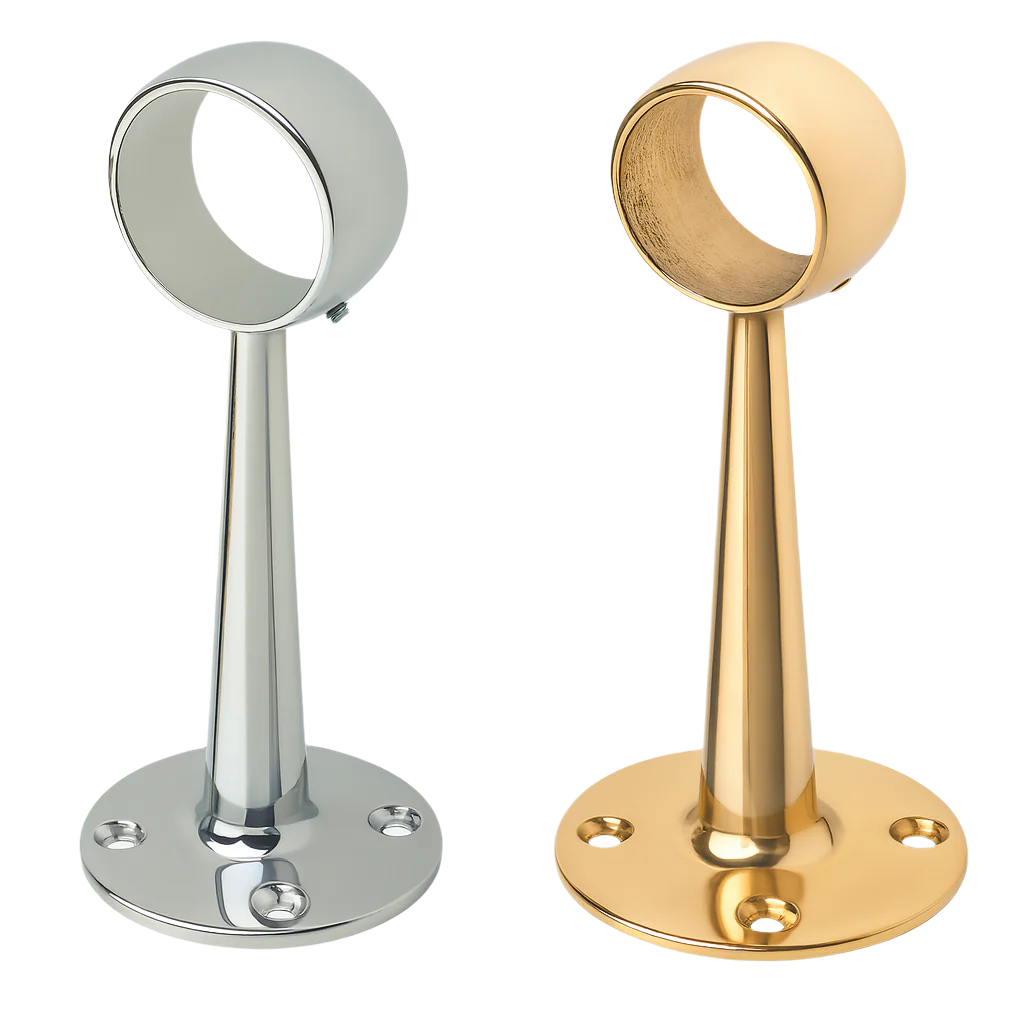

A tall upright centre bracket designed to provide reliable mid-span support for bar rails, foot rails, and handrail installations. Featuring a clean, architectural form with a tapered stem and circular ring, it offers both strength and a refined decorative finish.

Manufactured from high-quality solid brass and available in a full range of finishes, including our hand-applied antique finishes, each piece is designed to complement premium interior schemes while ensuring long-term durability.

Key Features

  • Suitable for bar rails, foot rails, and handrail applications
  • Tall upright design for increased clearance and support
  • 75mm diameter fixing base for secure installation
  • Four fixing points for added stability
  • Available in 38mm and 51mm diameter options to suit your tube selection

Compatible Products

  • Railing - Can be cut to exact length and is available in matching finishes and diameters.
  • Curved Radius Bend - Allows for smooth directional changes, connecting two straight railing runs to create a continuous, flowing layout.
  • Angle Stem Bracket -An upright centre bracket with a 45° stem designed to fix directly to the floor.
  • Side Stem Bracket - An upright centre bracket with a 90° stem designed to fix directly to the wall.
  • Flat End Cap - Provides a clean, flush finish to exposed tube ends, matching the overall system finish.

Finishes

Available in polished and antique finishes to coordinate with your wider hardware scheme.

See this link for a further look at our antique finishes. https://www.william-hopkins.co.uk/pages/our-range-of-antique-finishes

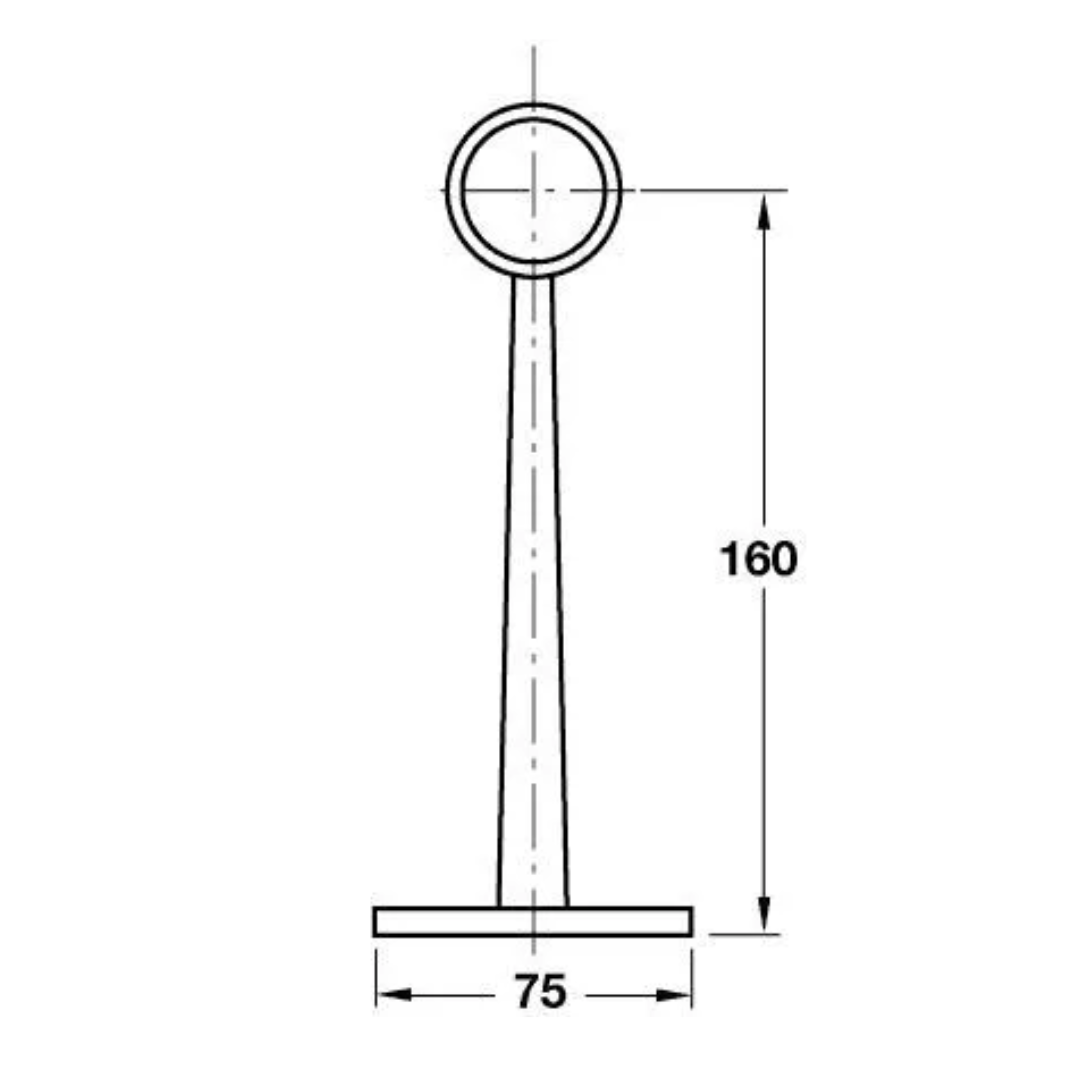

Dimensions

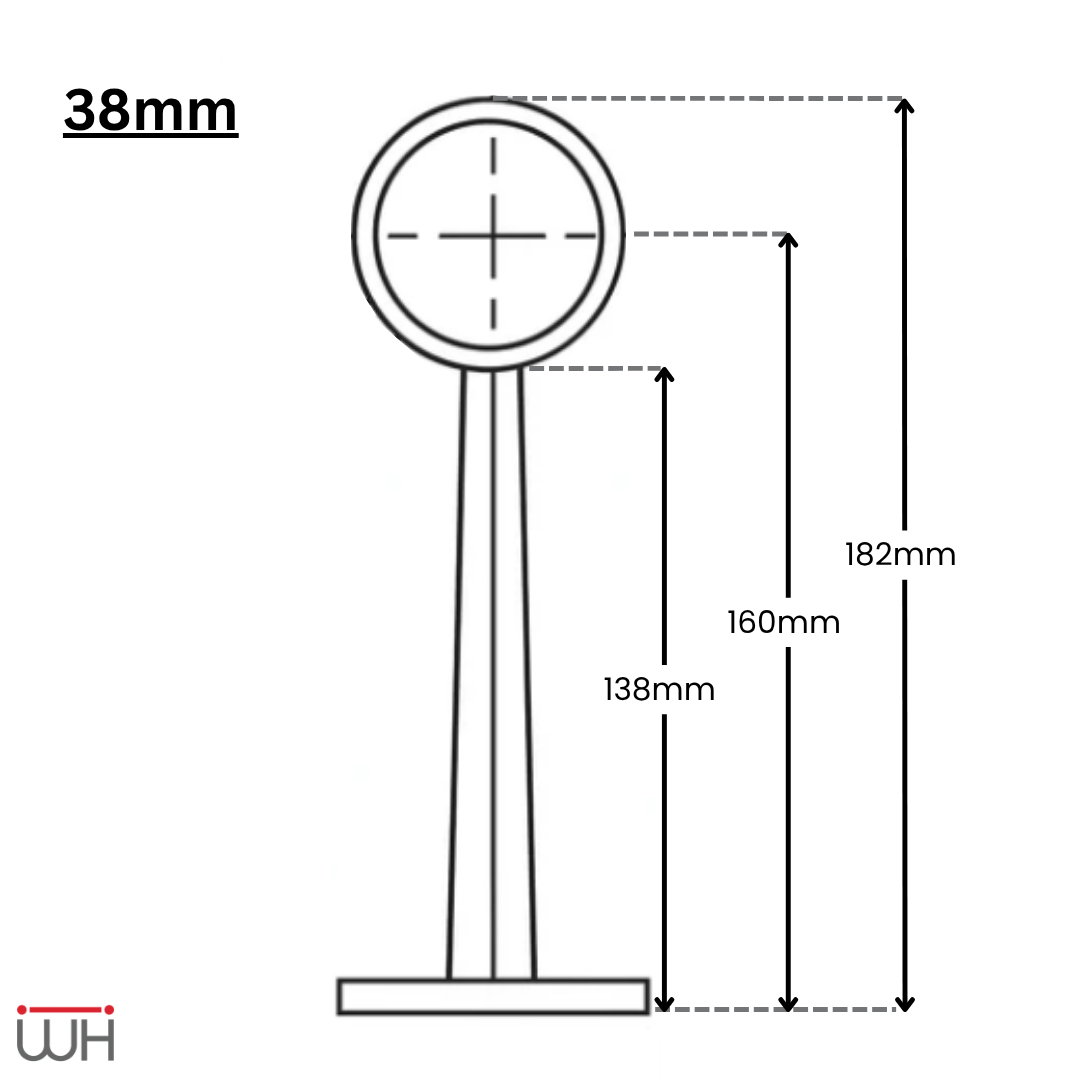

38mm Option

  • Compatible tube outer diameter - 38mm
  • Height to underside of ring - 138mm
  • Height to centre line - 160mm
  • Overall height - 182mm

51mm Option

  • Compatible tube outer diameter - 51mm
  • Height to underside of ring - 125mm
  • Height to centre line - 152mm
  • Overall height - 182mm

Lead Time

  • Antique finishes: Made to order - dispatch within 10-14 working days
  • Standard finishes: Dispatch within 3-5 working days

Shipping

Shipping costs start from £7.95 - longer lengths incur a carriage surcharge. View full shipping details here.
