Bar Railing Angle Stem Bracket

A side stem centre bracket designed to provide reliable support for bar rails, foot rails, and handrail installations. Featuring a clean, architectural form with a tapered stem and circular ring, it offers both strength and a refined decorative finish.

Manufactured from high-quality solid brass and available in a full range of finishes, including our hand-applied antique finishes, each piece is designed to complement premium interior schemes while ensuring long-term durability.

Key Features

• Suitable for bar rails, foot rails, and handrail applications

• Side stem design - fixed directly to a horizontal surface (floor or cabinet base)

• Provides strong mid-span support with a clean, architectural appearance

• 75mm diameter fixing base for secure installation

• 4 fixing points on the floor plate and 3 fixing points on the stem plate

• Available in 38mm and 51mm diameter options to suit your tube selection

Compatible Products

• Railing - Can be cut to exact length and is available in matching finishes and diameters

• Curved Radius Bend - Allows for smooth directional changes, connecting two straight railing runs to create a continuous, flowing layout

• Upright Centre Bracket - Floor-mounted support option for longer spans requiring vertical reinforcement

• Side Stem Bracket - 45° stem variation for angled support applications

• Flat End Cap - Provides a clean, flush finish to exposed tube ends, matching the overall system finish

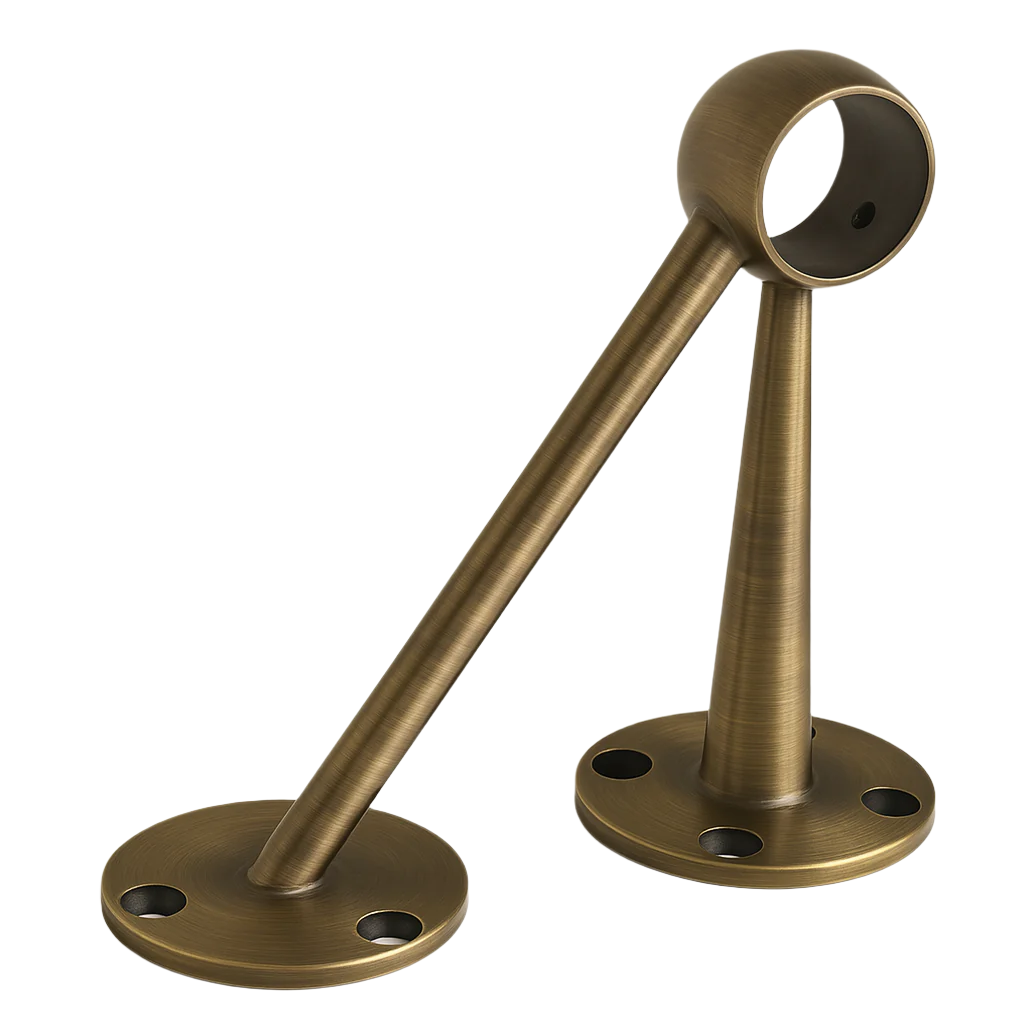

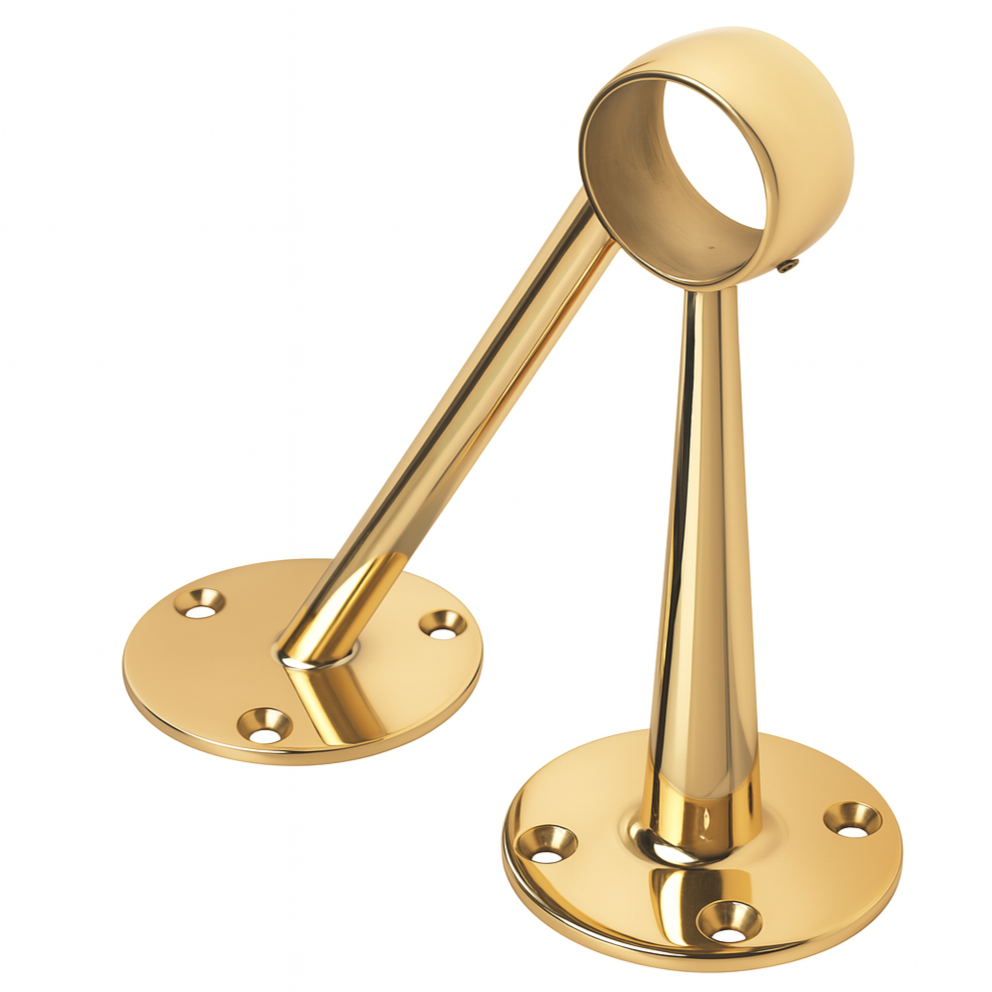

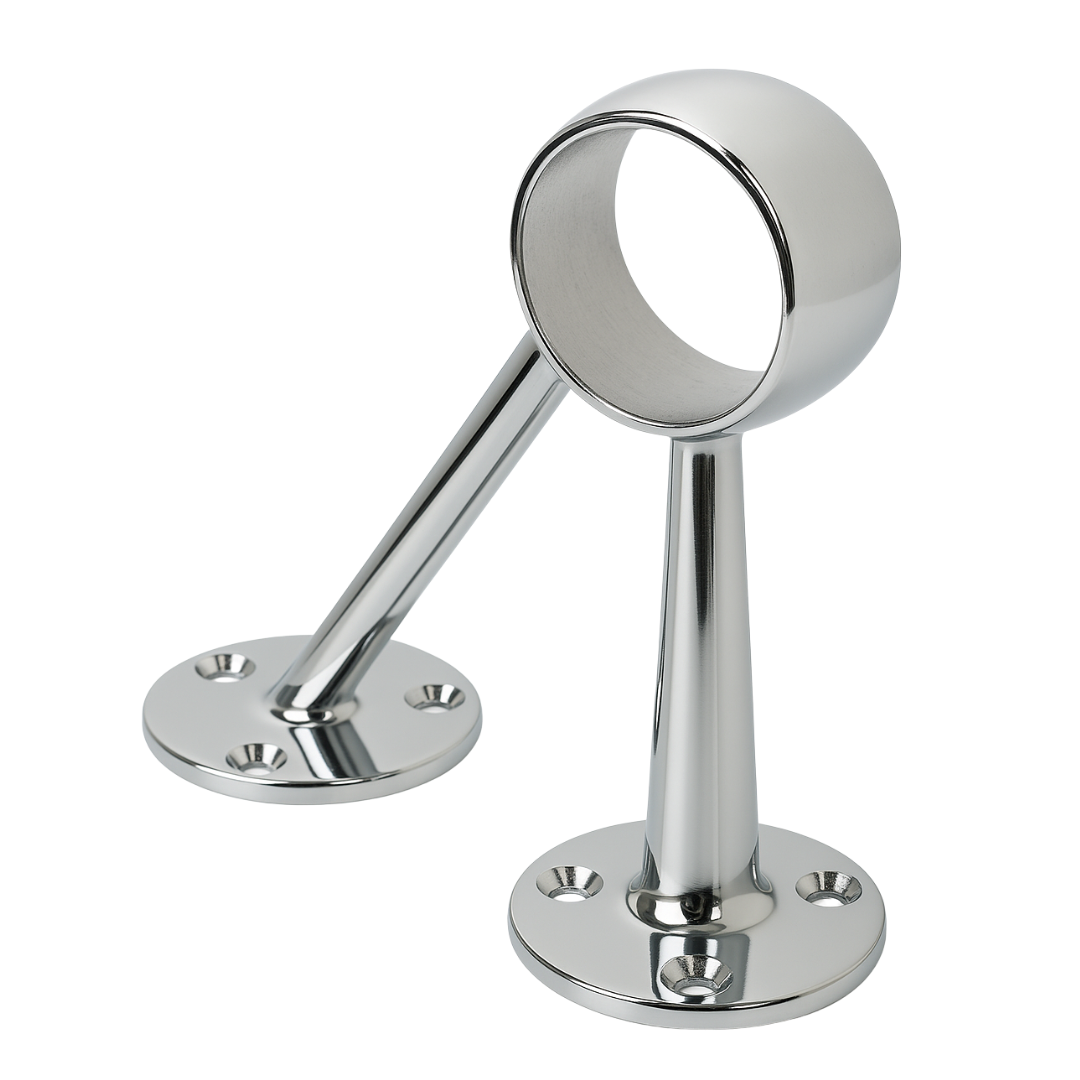

Finishes

Available in polished and antique finishes to coordinate with your wider hardware scheme.

See this link for a further look at our antique finishes:
https://www.william-hopkins.co.uk/pages/our-range-of-antique-finishes

Dimensions

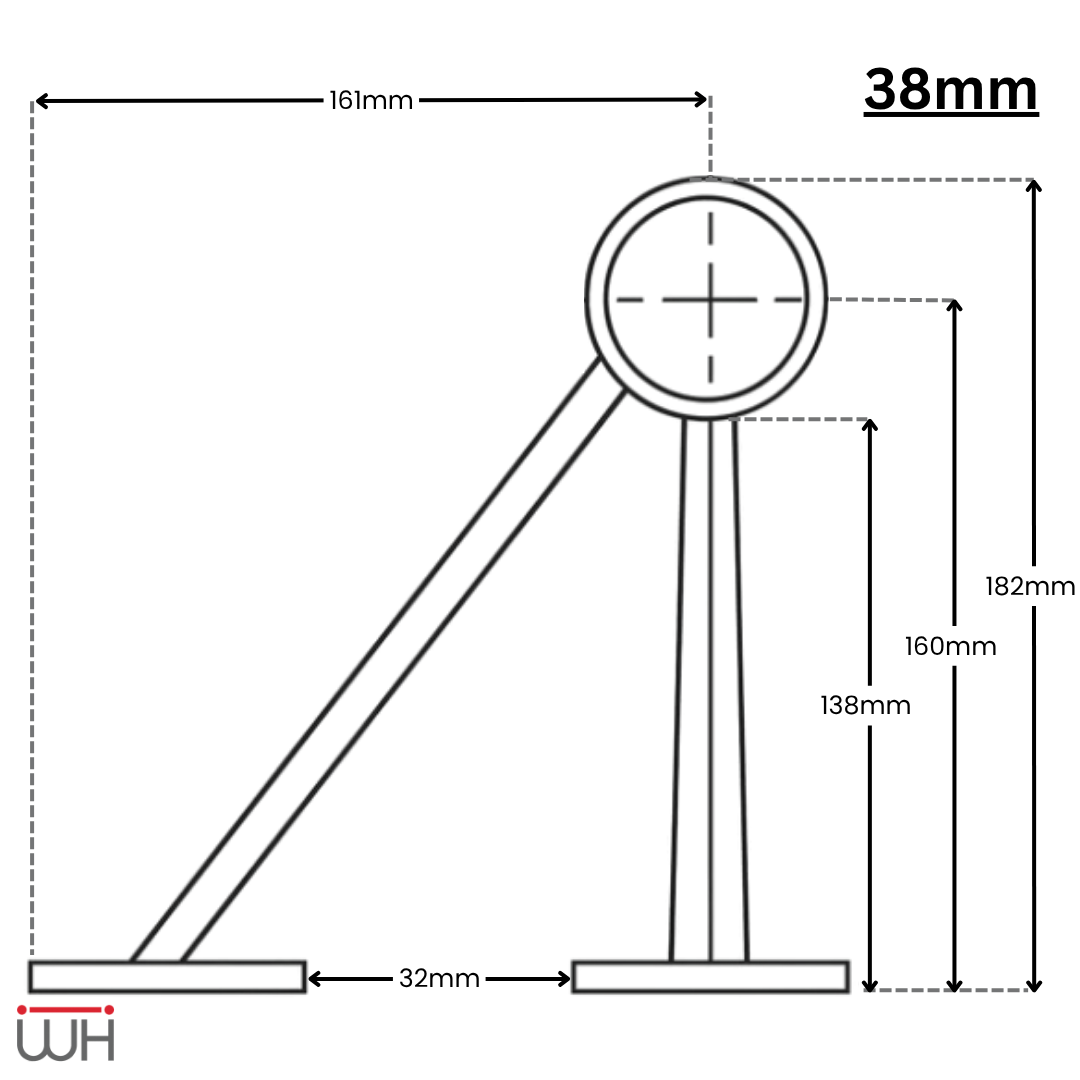

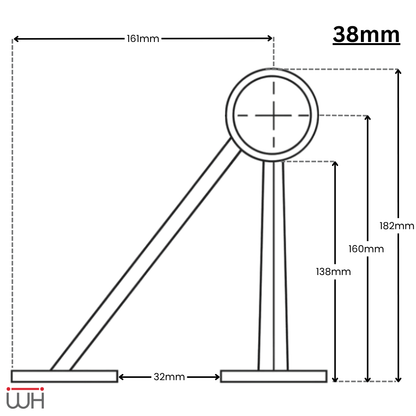

38mm Option

• Compatible tube outer diameter - 38mm

• Projection from centre line - 161mm

• Height to underside of ring - 138mm

• Height to centre line - 160mm

• Overall height - 182mm

• Base offset - 32mm

51mm Option

• Compatible tube outer diameter - 51mm
  (Details to follow)

Lead Time

Antique finishes - Made to order - dispatch within 10-14 working days
Standard finishes - Dispatch within 3-5 working days
