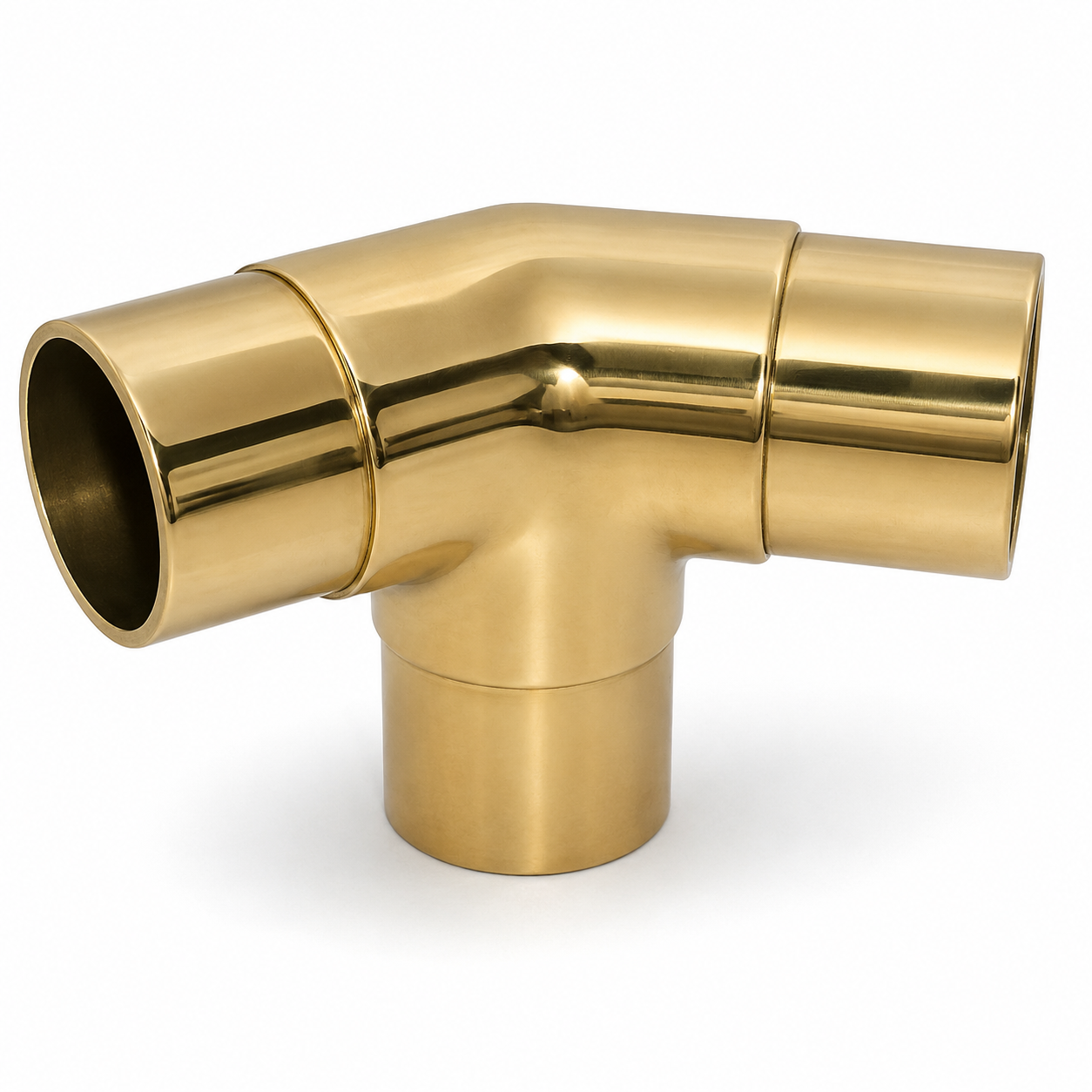

135° Side Outlet Elbow

The 135° Side Outlet Elbow is a three-way tube connector designed to create an angled change of direction while providing an additional outlet for a vertical support. Ideal for railing systems, handrails, display rails, shopfitting installations and bespoke decorative tube frameworks.

The fitting creates a 135° change of direction between the two main tube runs, with a third outlet positioned underneath for connecting a supporting tube. Each tube fits internally into the connector, creating a clean, flush appearance with minimal interruption to the finished railing system.

Manufactured from solid brass and available to suit 25mm, 38mm and 51mm diameter tube. The adjoining tubes should be secured inside the fitting using a suitable adhesive or epoxy glue.

Suitable for both residential and commercial applications, the 135° Side Outlet Elbow can be combined with our matching round tube, brackets and fittings to create a complete bespoke railing system.

Choosing between finishes? View our antique finish options.

Key Features

• Solid brass construction
• Available for 25mm, 38mm and 51mm diameter tube
• Three-way configuration with two angled outlets and one supporting outlet
• Creates a 135° change of direction between the main tube runs
• Flush internal-fit design for a clean, streamlined appearance
• Internal fitting requires adhesive or epoxy glue to secure
• Available in a wide selection of polished, plated, satin and hand-applied antique finishes
• Designed to coordinate with our matching round tube, brackets and rail fittings

Typical Uses

• Decorative railing systems
• Handrails and balustrade frameworks
• Three-way railing junctions
• Retail and display rails
• Shopfitting installations
• Bespoke architectural tube frameworks
• Residential and commercial interiors

Lead Times

• Standard finishes - dispatch within 5 business days of order
• Antique & Satin Brass finishes - dispatch within 14 working days of order
