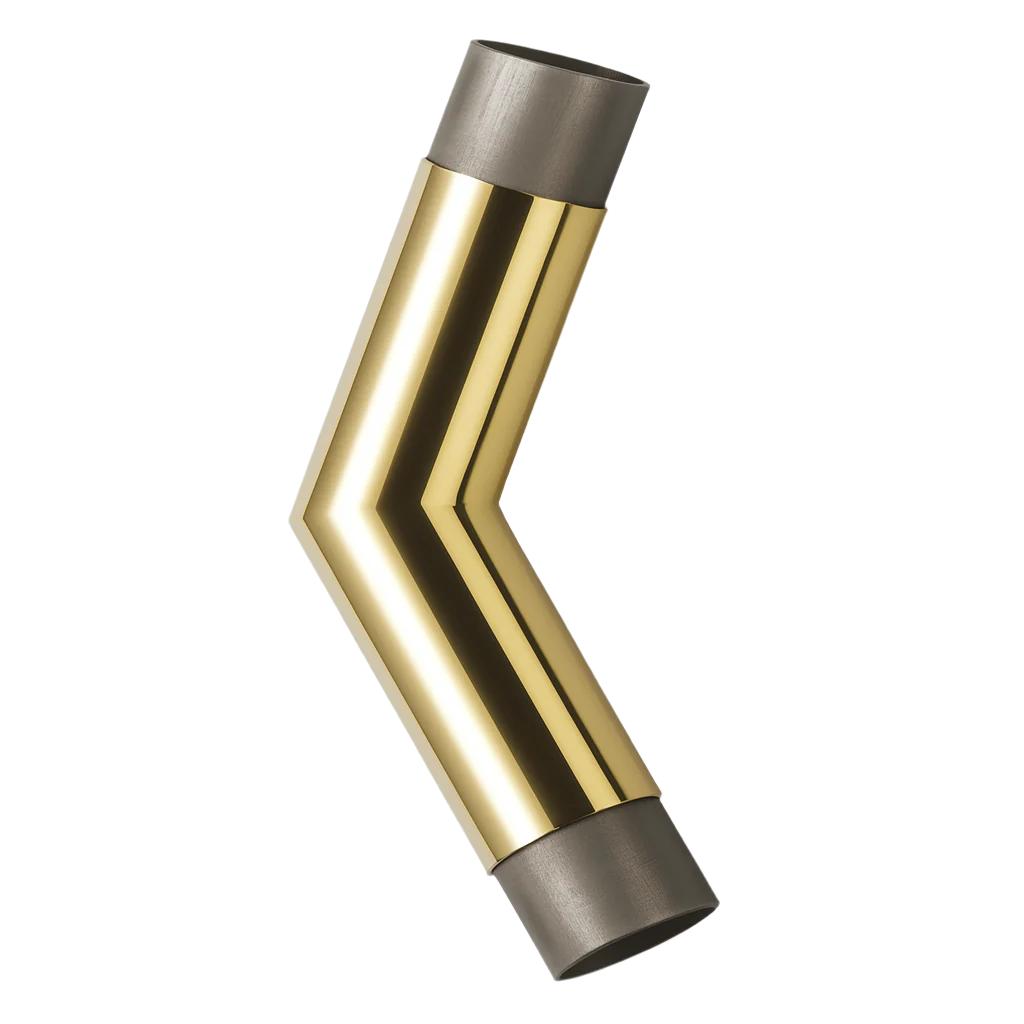

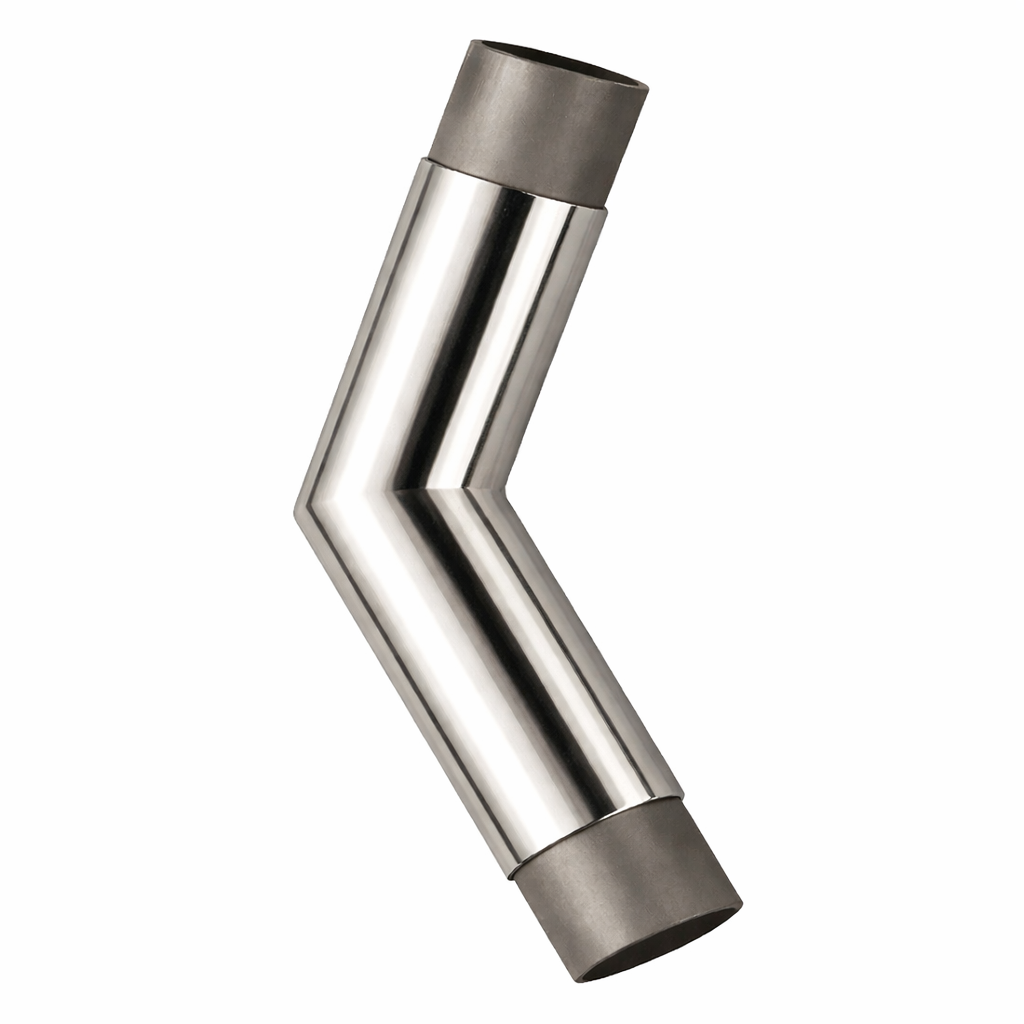

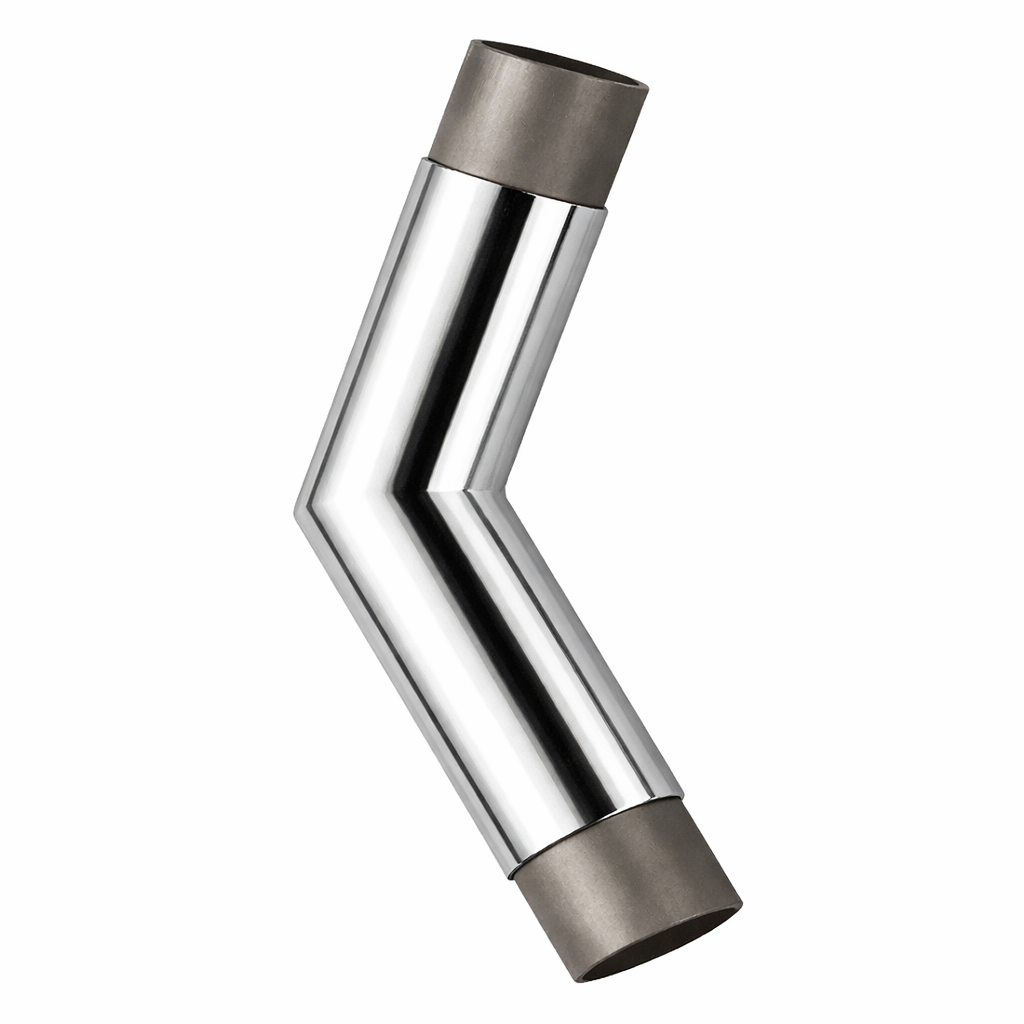

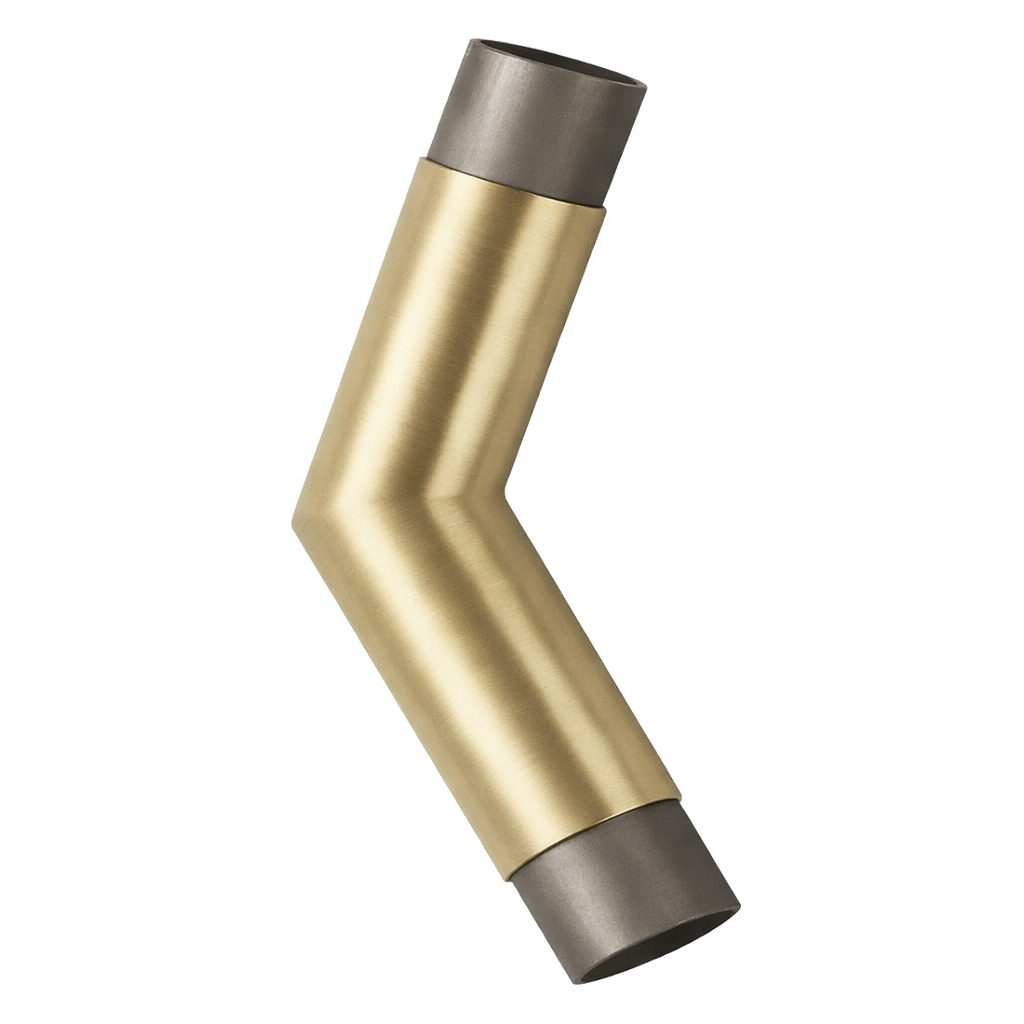

Mitred Bend Elbow

Manufactured from high-quality brass, a mitred bend elbow designed to create sharp, precise directional changes within tube and rail systems. Featuring a clean, angular profile, this fitting forms a crisp joint between tube lengths, making it ideal for applications where a defined, geometric finish is preferred.

Unlike curved bends, the mitred design delivers a more structured and contemporary appearance, commonly used in architectural rail systems where clean lines and sharp transitions are required.

What it Does

• Connects two tube lengths at a defined angle

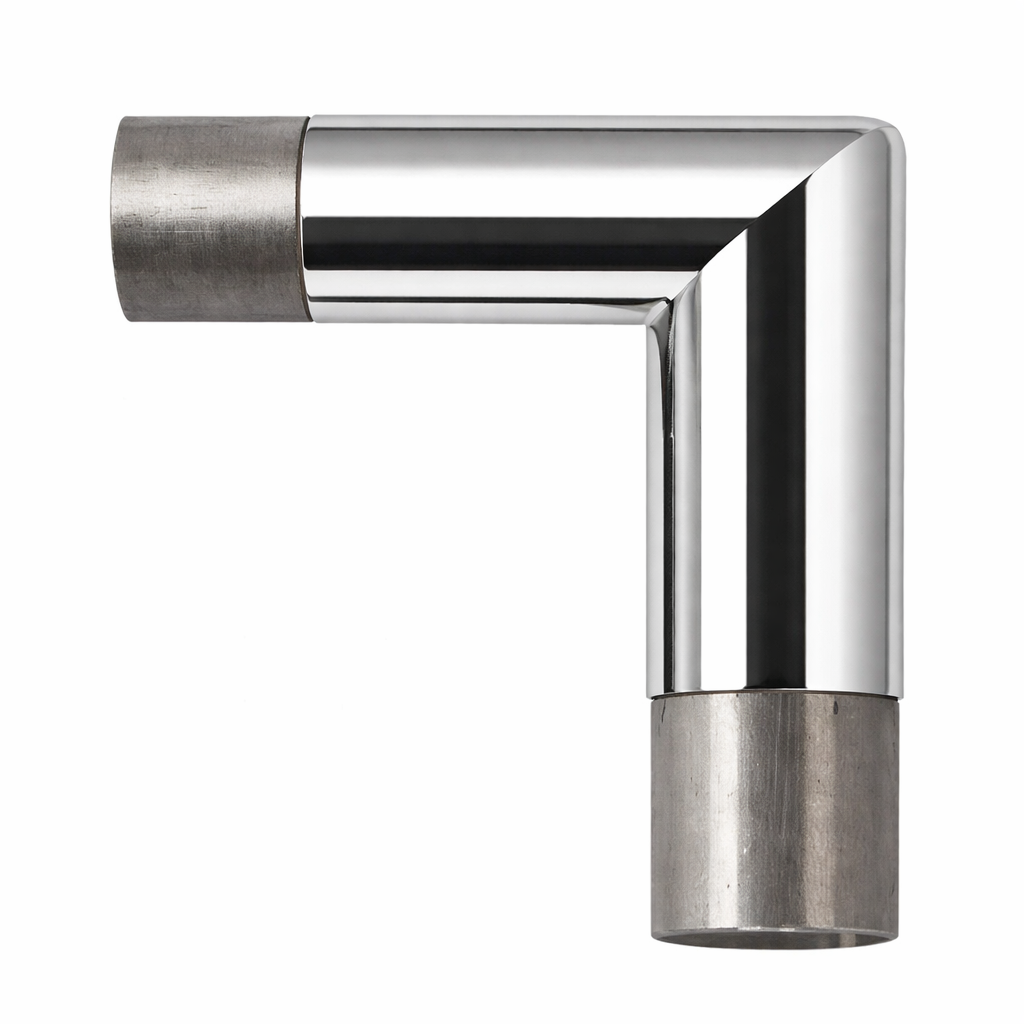

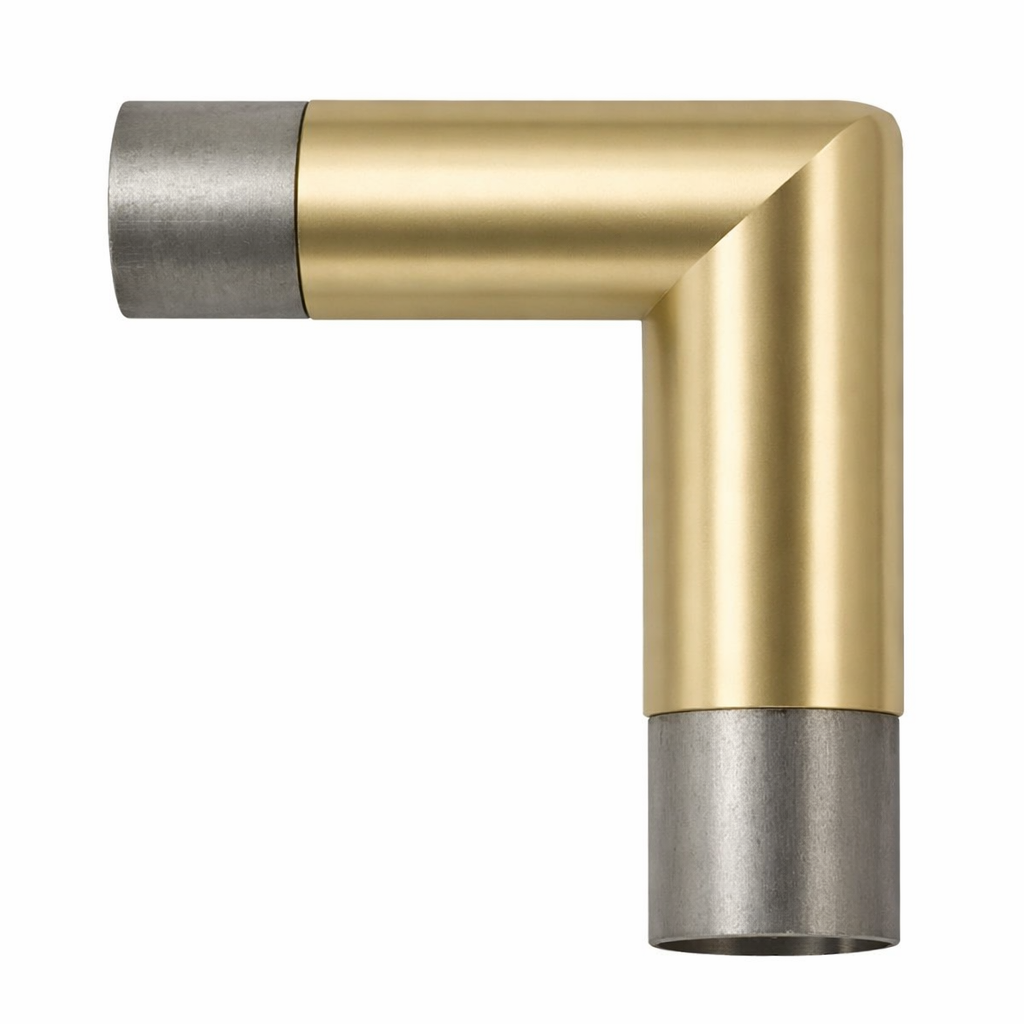

• Creates either a 90° or 135° directional change

• Forms a sharp, clean joint between rail sections

• Provides a structured alternative to curved radius bends

Key Features

• Mitred profile for a crisp, architectural finish

• Supplied with internal mild steel spigots for secure fixing

• Provides a flush, continuous appearance across joints

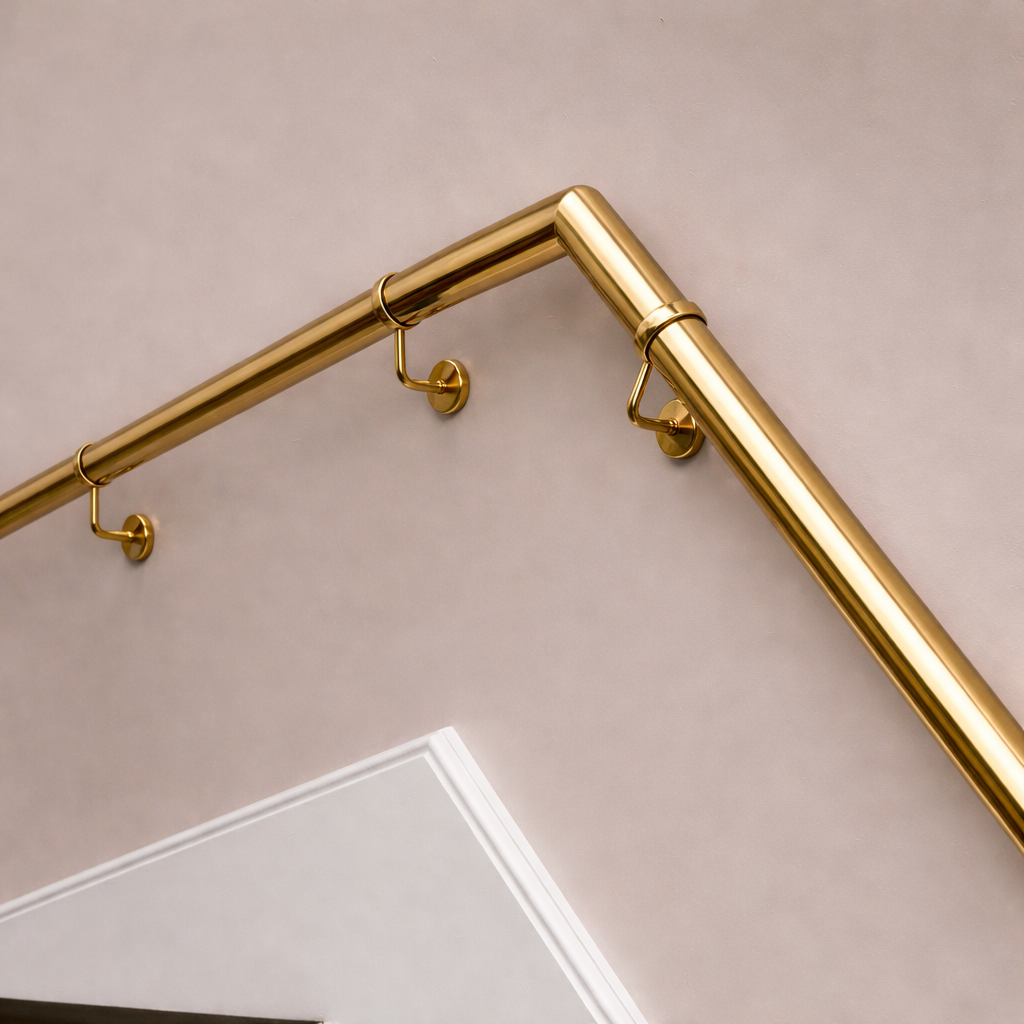

• Suitable for bar rails, foot rails, and handrail systems

• Available in 38mm and 51mm diameter options

• Available in a full range of finishes including polished, satin, plated, and antique finishes


Compatible Products

Railing - Available in matching finishes and diameters, and can be cut to exact length to suit your installation

Brackets - Used to support the rail along straight runs between directional changes

Flat End Cap - Provides a clean, finished end to exposed tube ends, maintaining a neat and coordinated appearance

Finishes

Available in polished and antique finishes to coordinate with your wider hardware scheme.

See this link for a further look at our antique finishes. https://www.william-hopkins.co.uk/pages/our-range-of-antique-finishes

Installation

Internal spigots insert into each end of the tube to create a tight, secure fit. Tubes can be fixed in place as required depending on installation.

Lead Time

Antique finishes - Made to order - dispatch within 10-14 working days
Standard finishes - Dispatch within 1-5 working days
