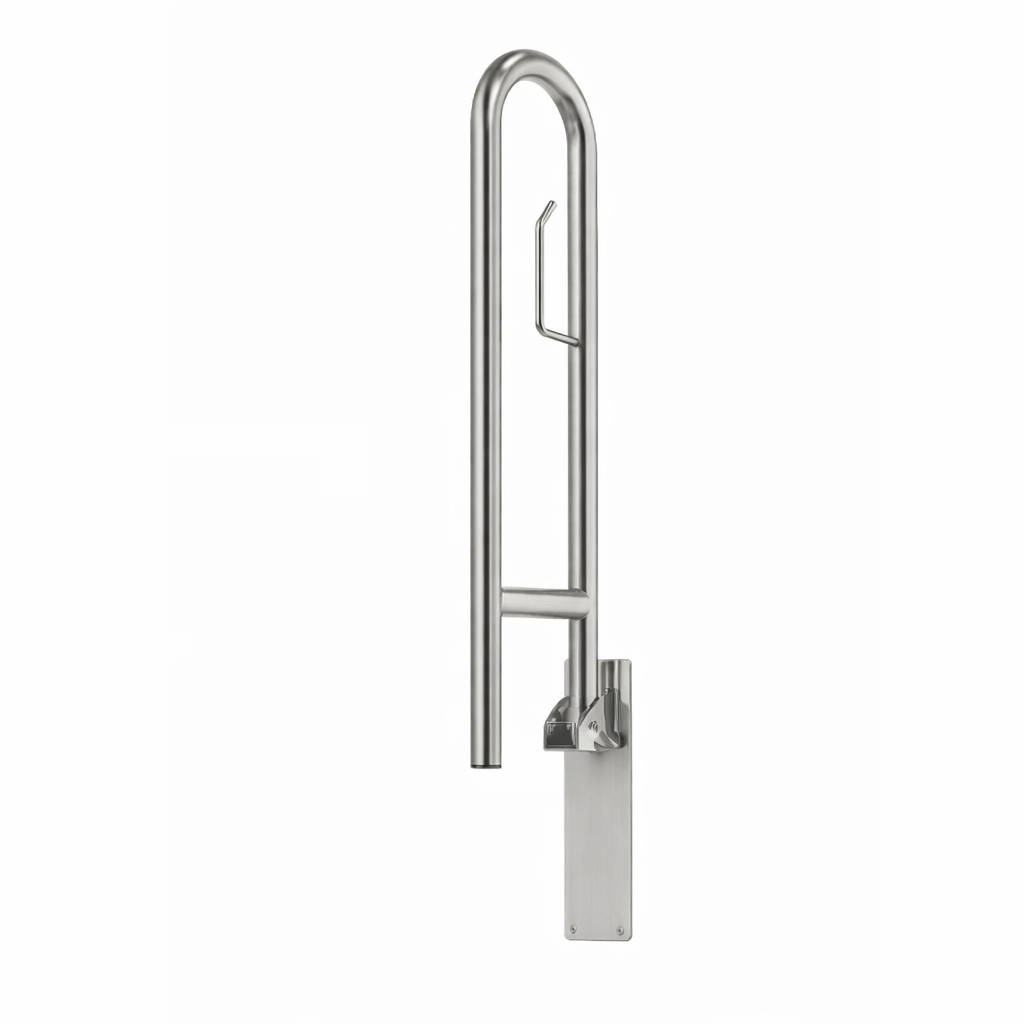

800mm Hinged Grab Rail

A hinged grab rail with integrated toilet roll holder, designed to provide reliable support in bathroom and accessible environments. Featuring a lift-and-lock folding mechanism, this rail offers both safety and space-saving functionality when not in use.

Manufactured from robust steel and available in a range of durable finishes, it is suitable for residential, commercial, and care settings where strength and compliance are essential.

Key Features

• Hinged design with lift-and-lock mechanism
• Integral toilet roll holder for added convenience
• Robust steel construction for strength and durability
• Locks securely in the upright position when not in use
• Complies with Part M of the Building Regulations
• Doc M compliant

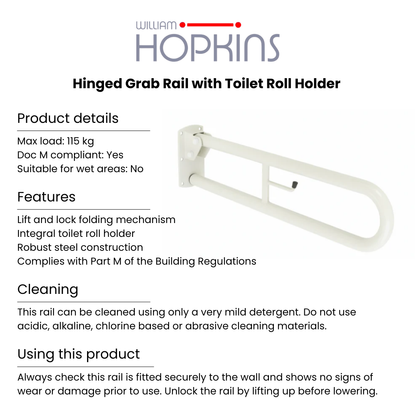

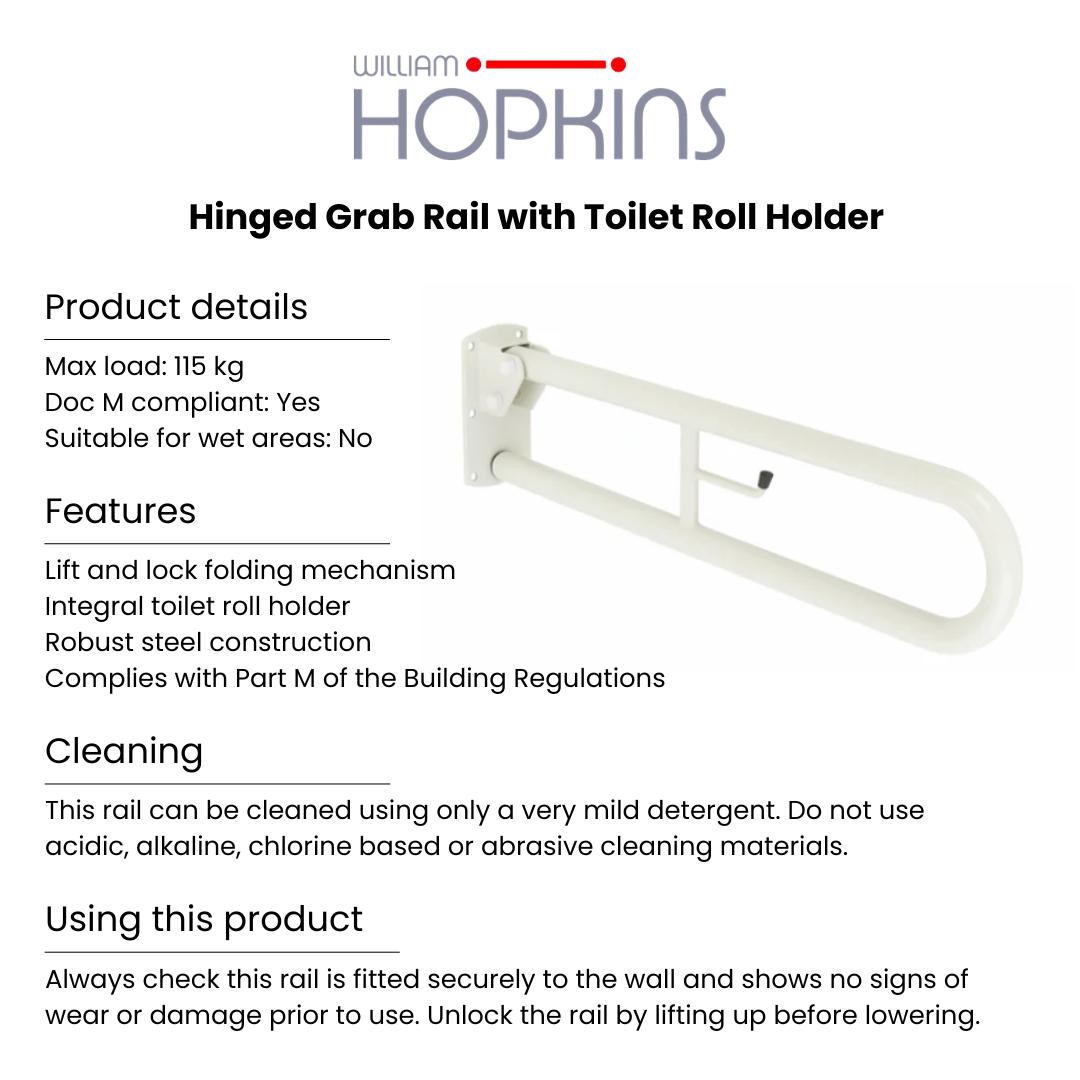

Product Details

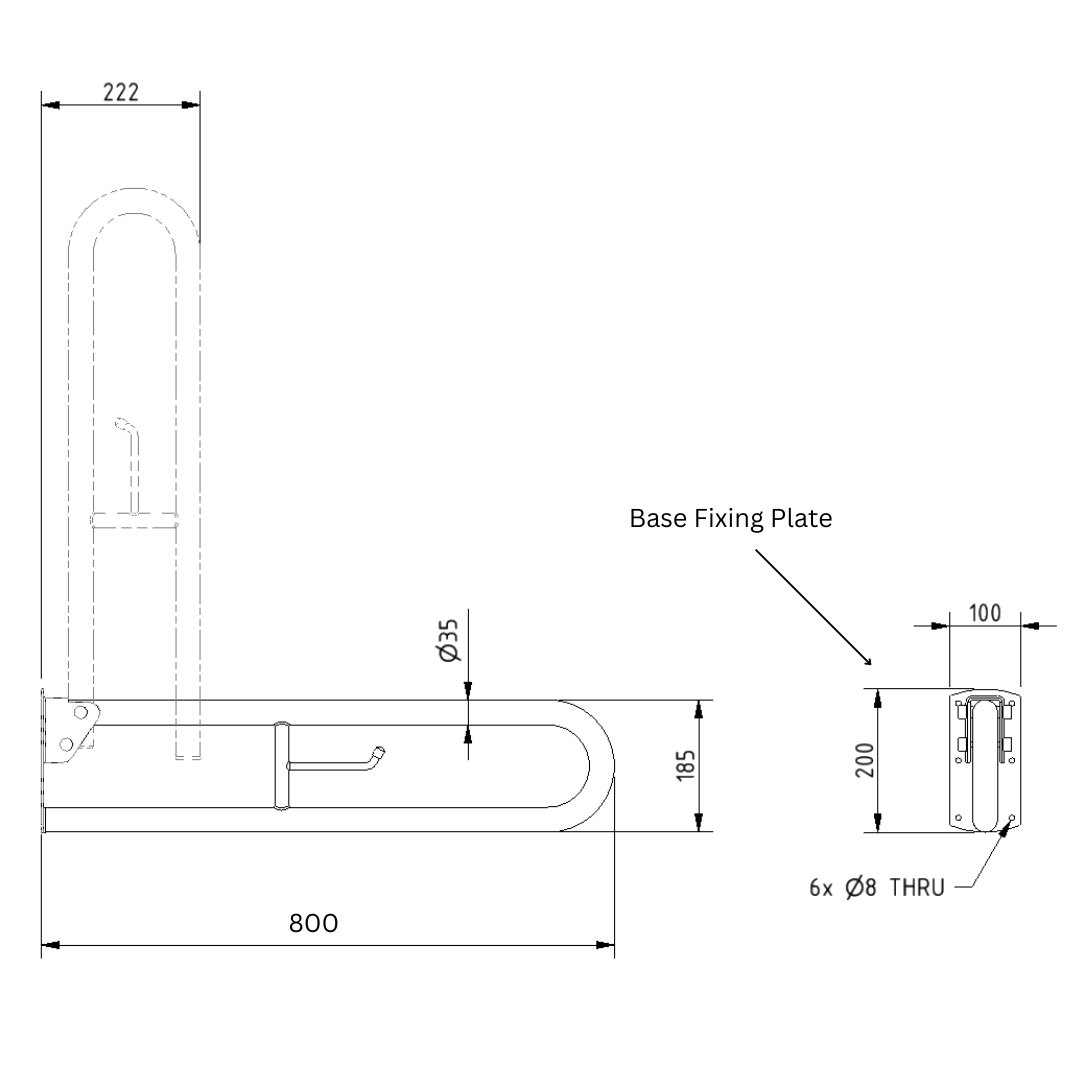

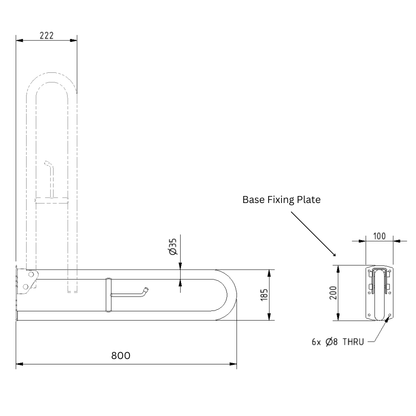

• Overall length: 800mm
• Rail diameter: 32mm
• Back plate height: 200mm
• 6 fixing holes (Ø8mm) for secure installation
• Maximum load: 115kg
• Suitable for dry areas only

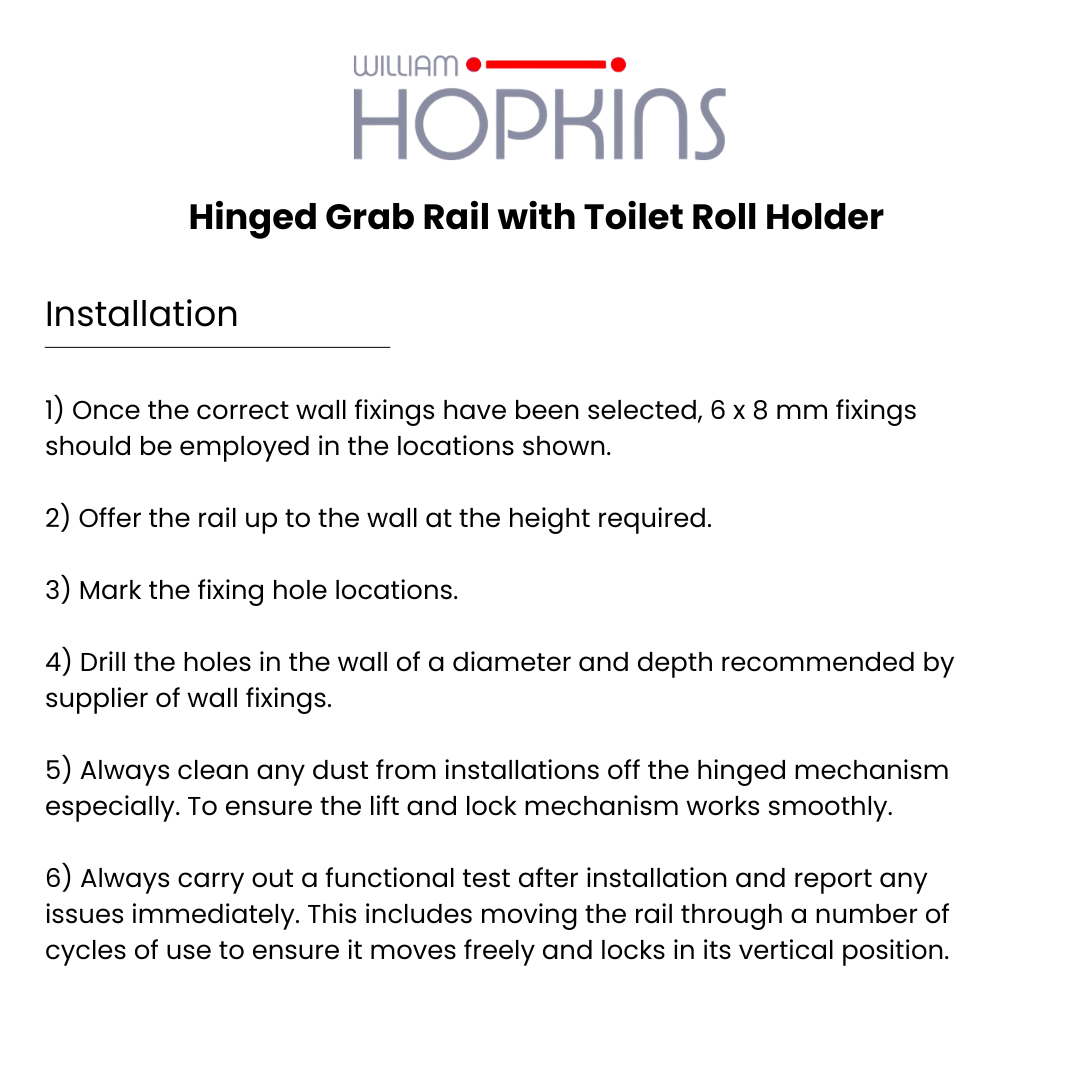

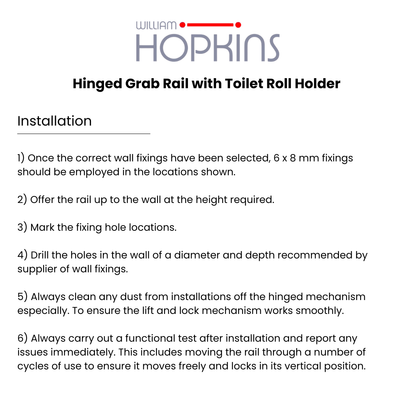

Installation

• Designed to be wall-mounted using appropriate fixings for the substrate

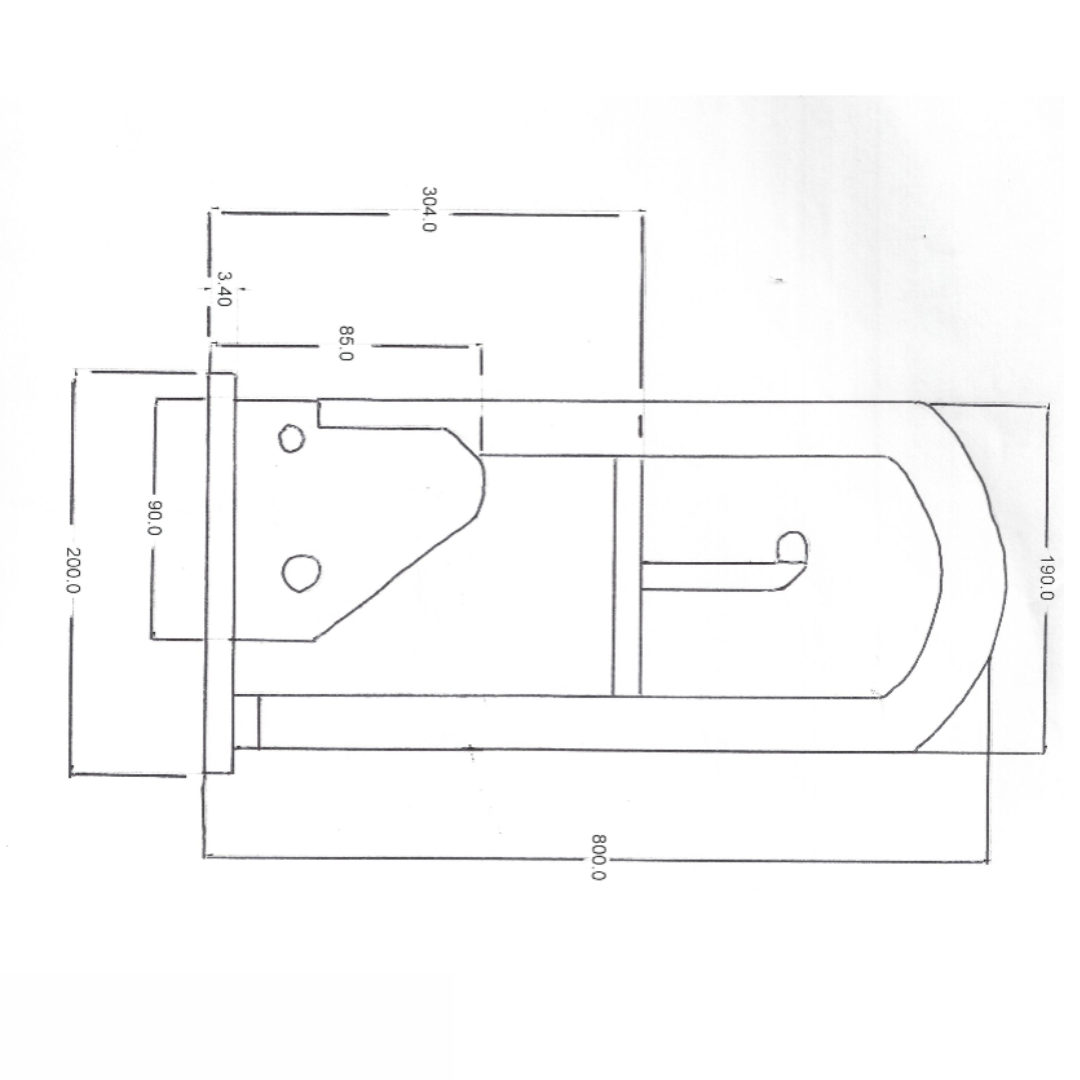

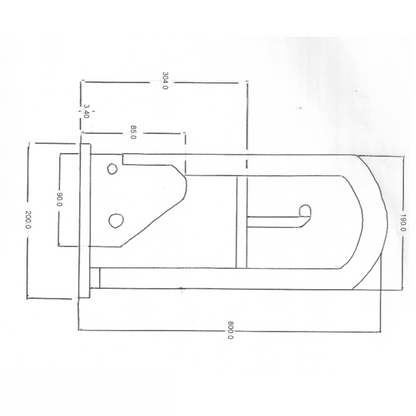

• Fixing positions as shown on technical drawing
• Drill holes to suit selected wall fixings
• Ensure all dust is cleared before installing mechanism
• Test functionality after installation to ensure smooth operation and secure locking

Cleaning & Maintenance

• Clean using a mild detergent only
• Do not use abrasive, acidic, alkaline, or chlorine-based cleaners
• Regularly check for secure fixing and smooth operation

Available Finishes

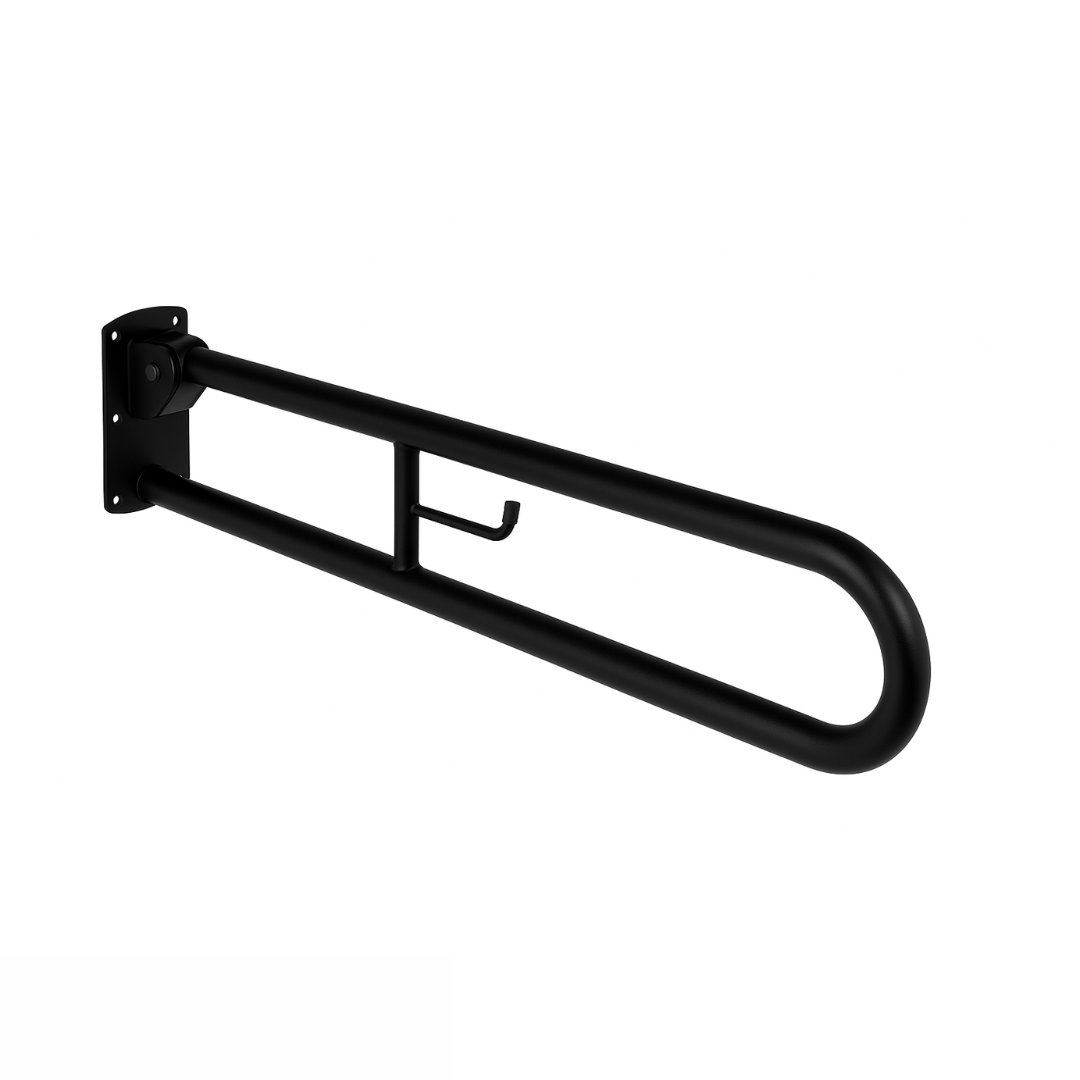

• Black

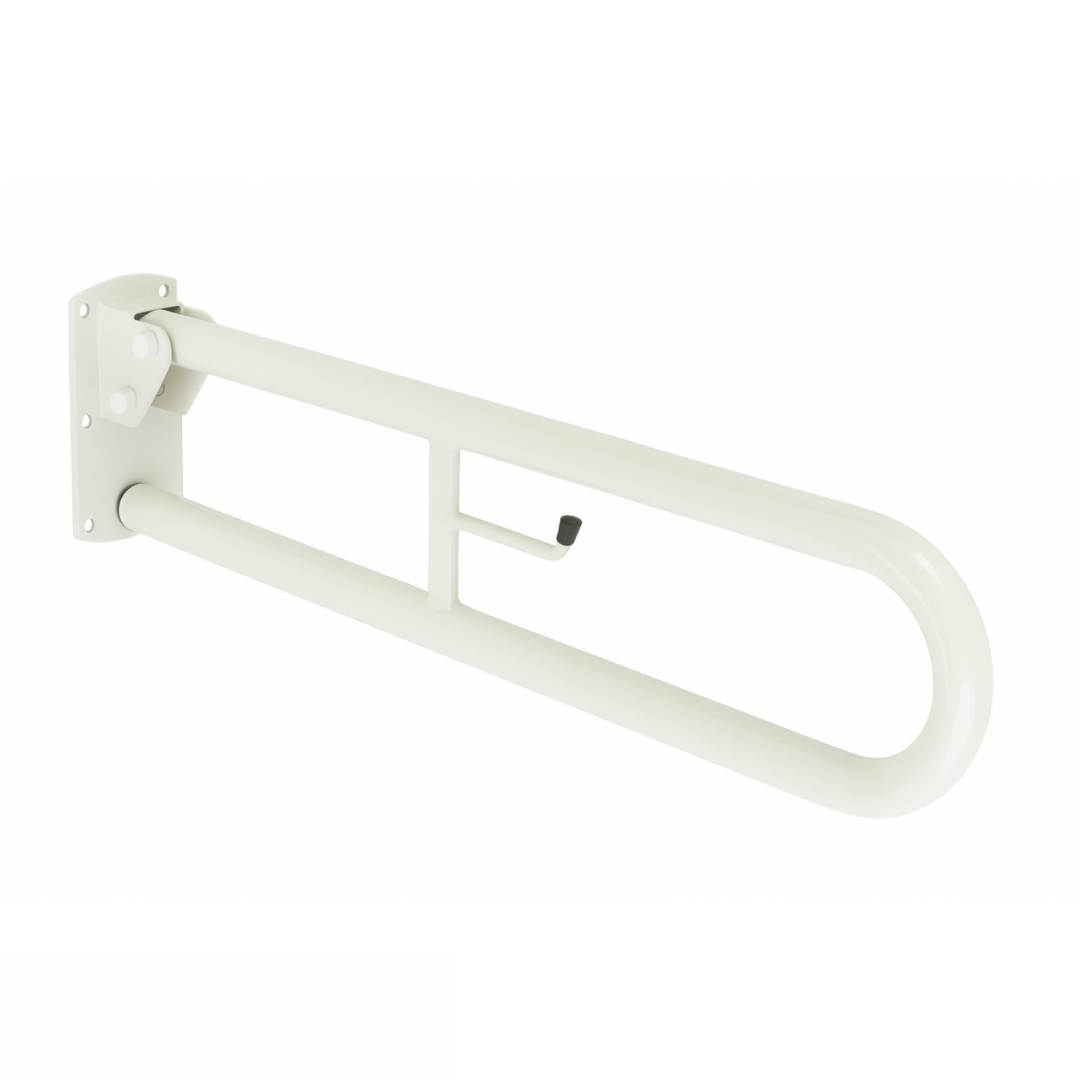

• White

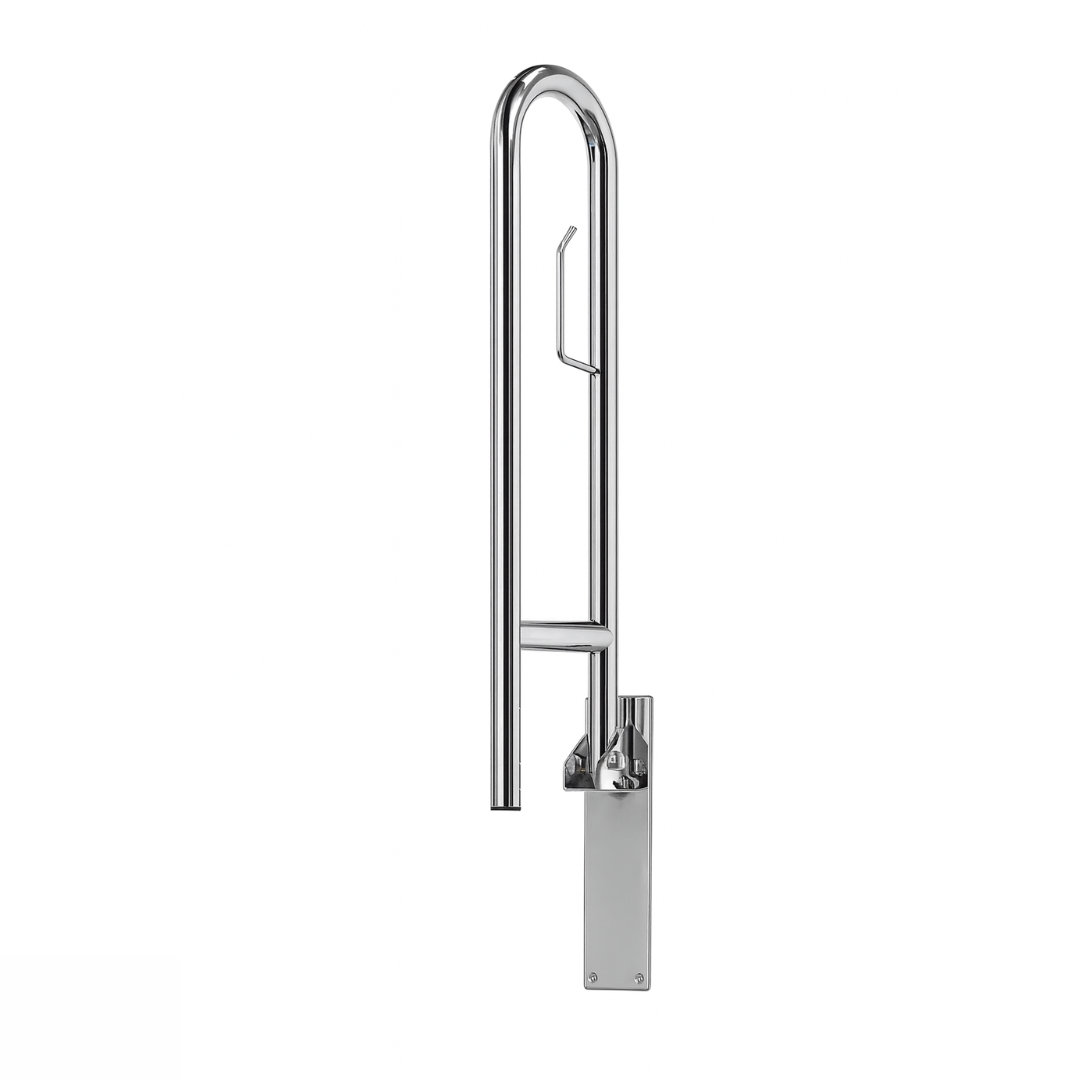

• Polished
• Stainless Steel
• Other RAL colours available - Price on Application
