Short Ball Top Bracket

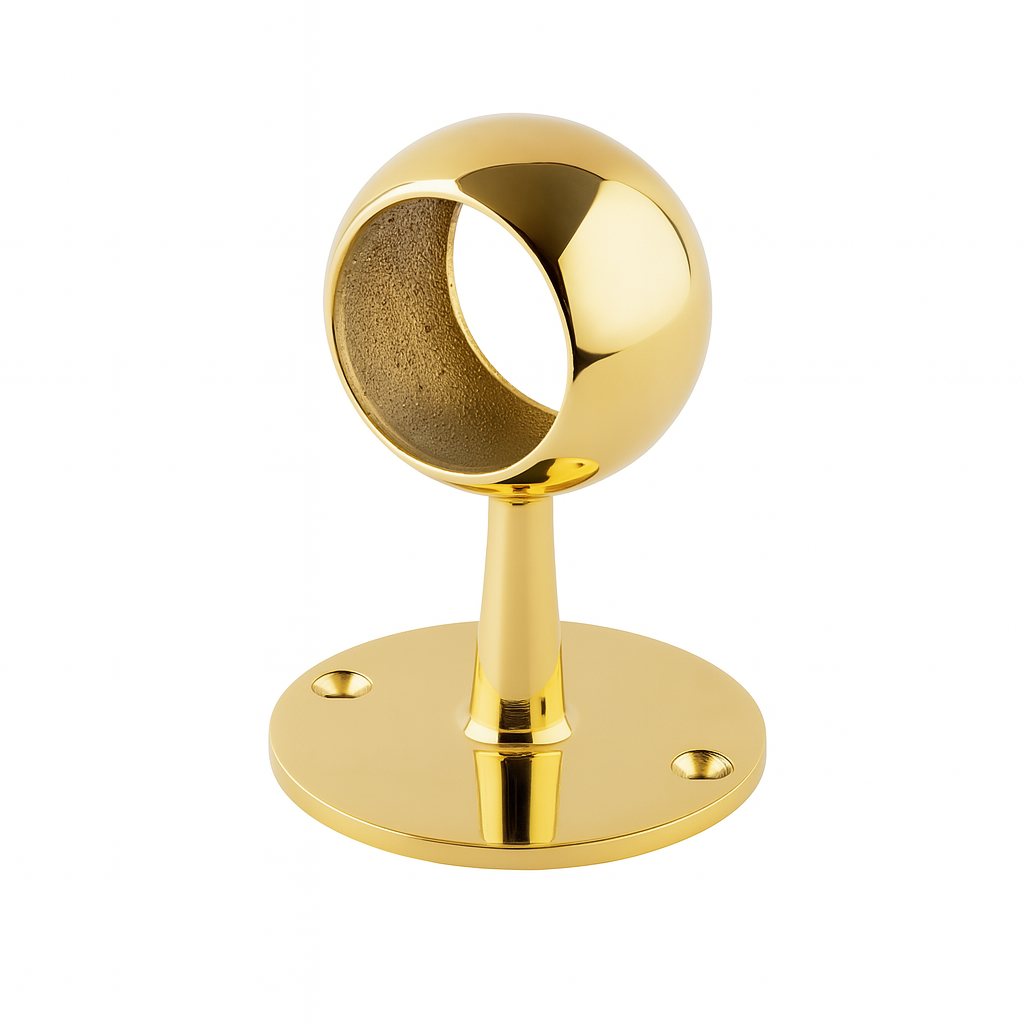

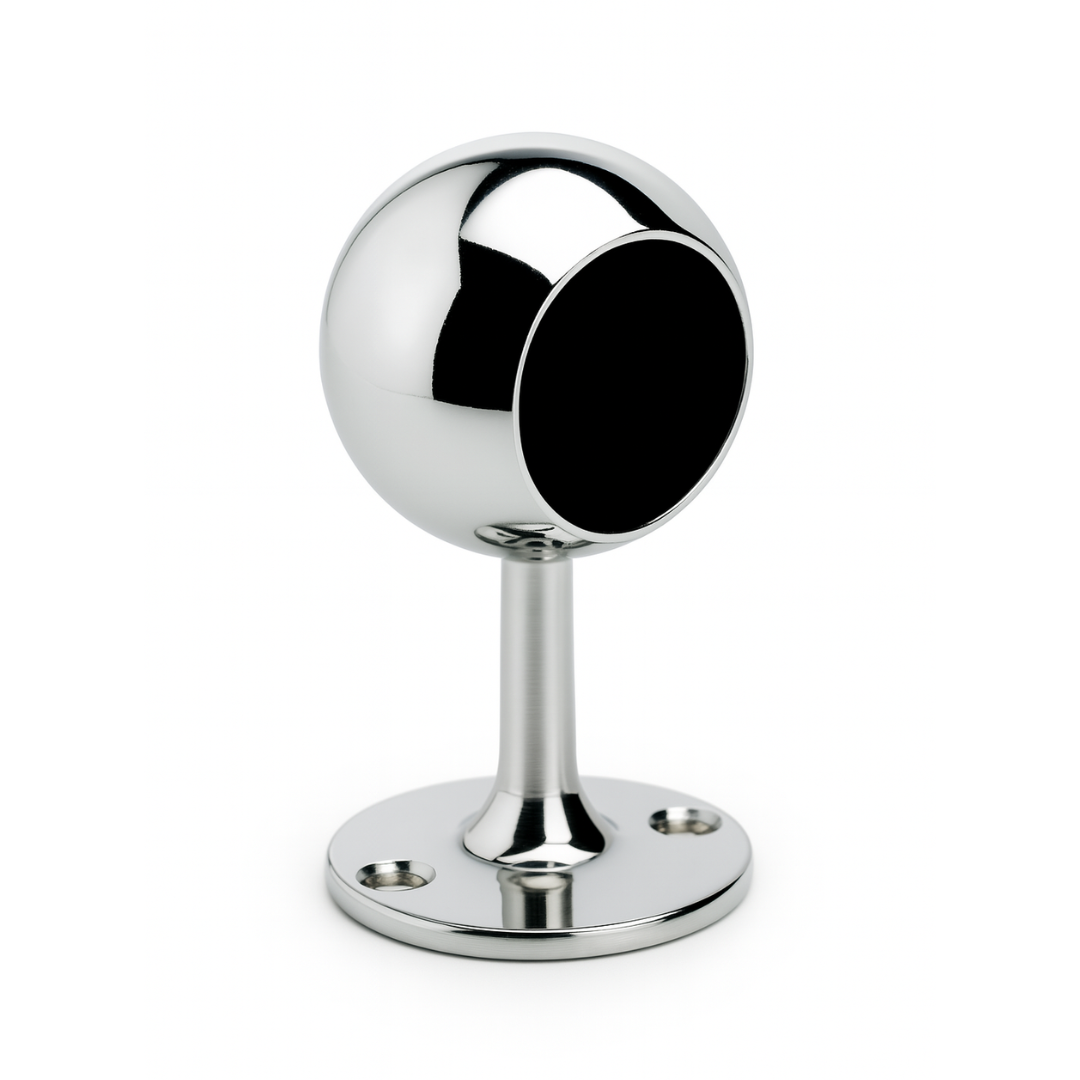

A decorative brass ball top bracket designed to support round tube in railing systems. Featuring a distinctive spherical head detail, this bracket provides both structural support and a refined decorative finish, making it ideal for visible installations.

With a shorter stem profile, this version offers a more compact projection from the fixing surface while maintaining strength and stability.

Choosing between finishes? See this link for a closer look at our antique finish options:
https://www.william-hopkins.co.uk/pages/our-range-of-antique-finishes

Key Features

• Decorative ball top design for a premium appearance
• Suitable for supporting round tube in railing and hanging systems

• Available in centre and end bracket configurations

• Short stem design for reduced projection

• Secure fixing base with 2 screw holes

• Compatible with 38mm and 51mm diameter tube

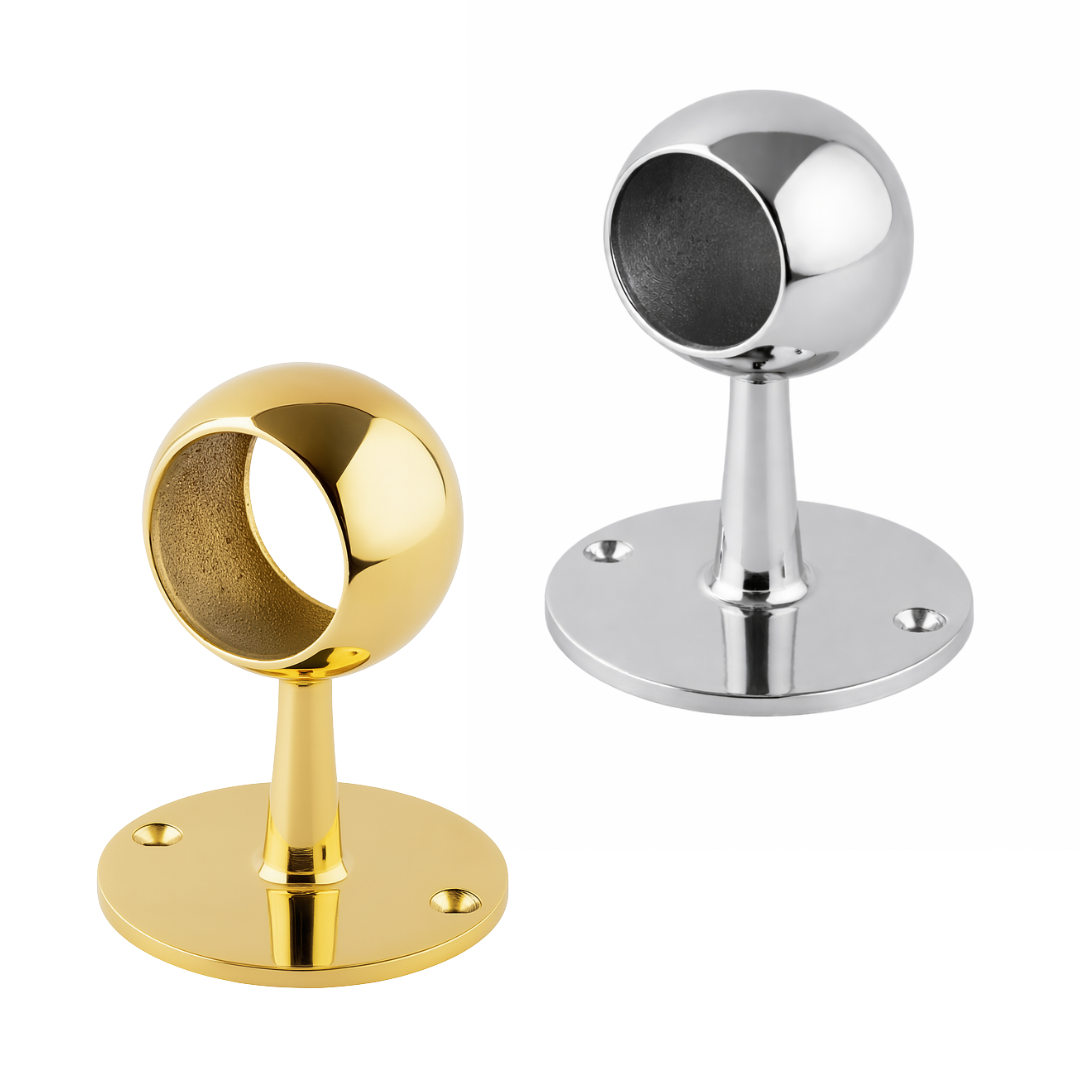

• Available in polished, satin, plated, and antique finishes

Typical Uses

• Stair handrail systems

• Barrier rails

• Bar & Foot Rails

• Retail and display fittings

Dimensions

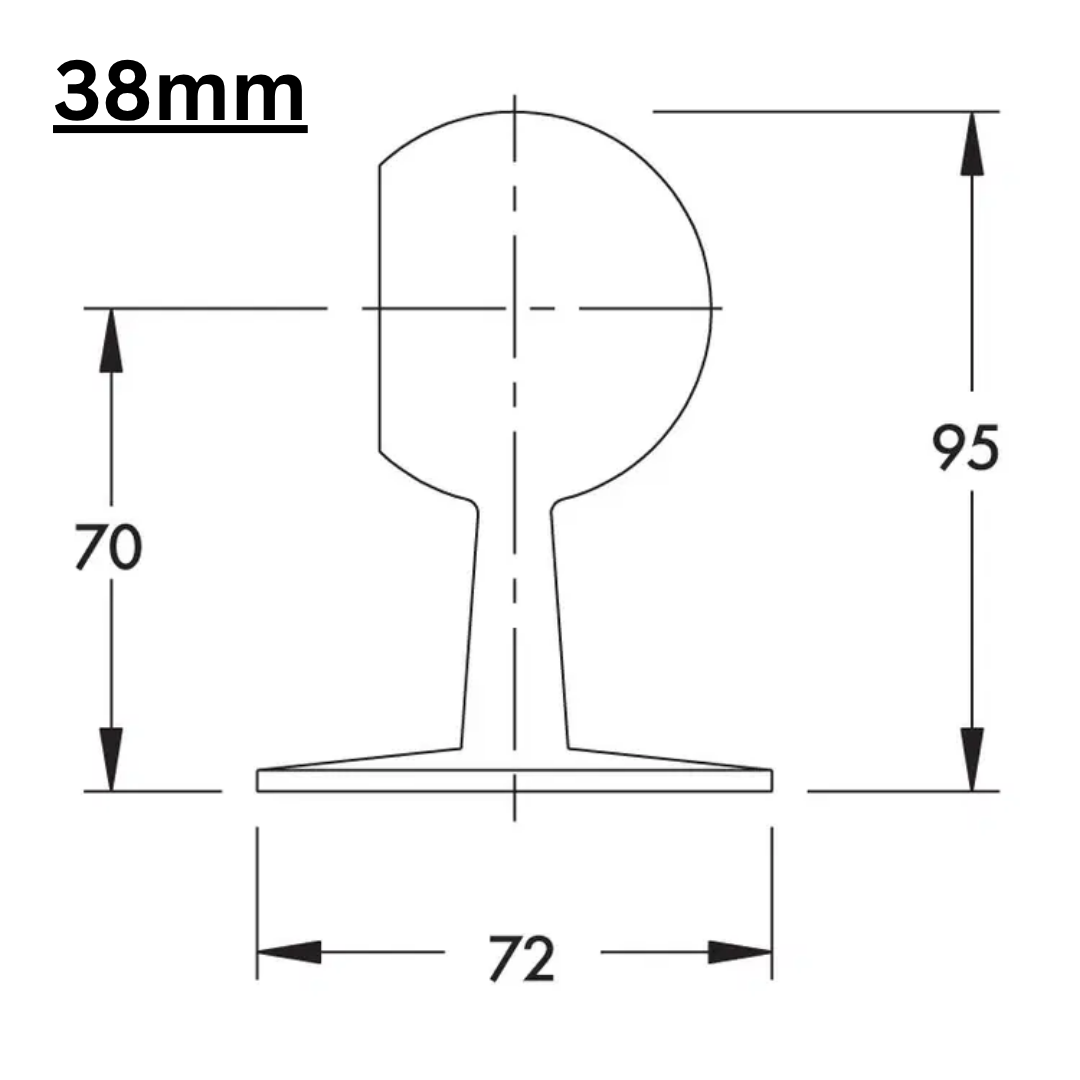

38mm

• Base diameter (A): 72mm

• Overall height (B): 95mm

• Height to centre line (C): 70mm

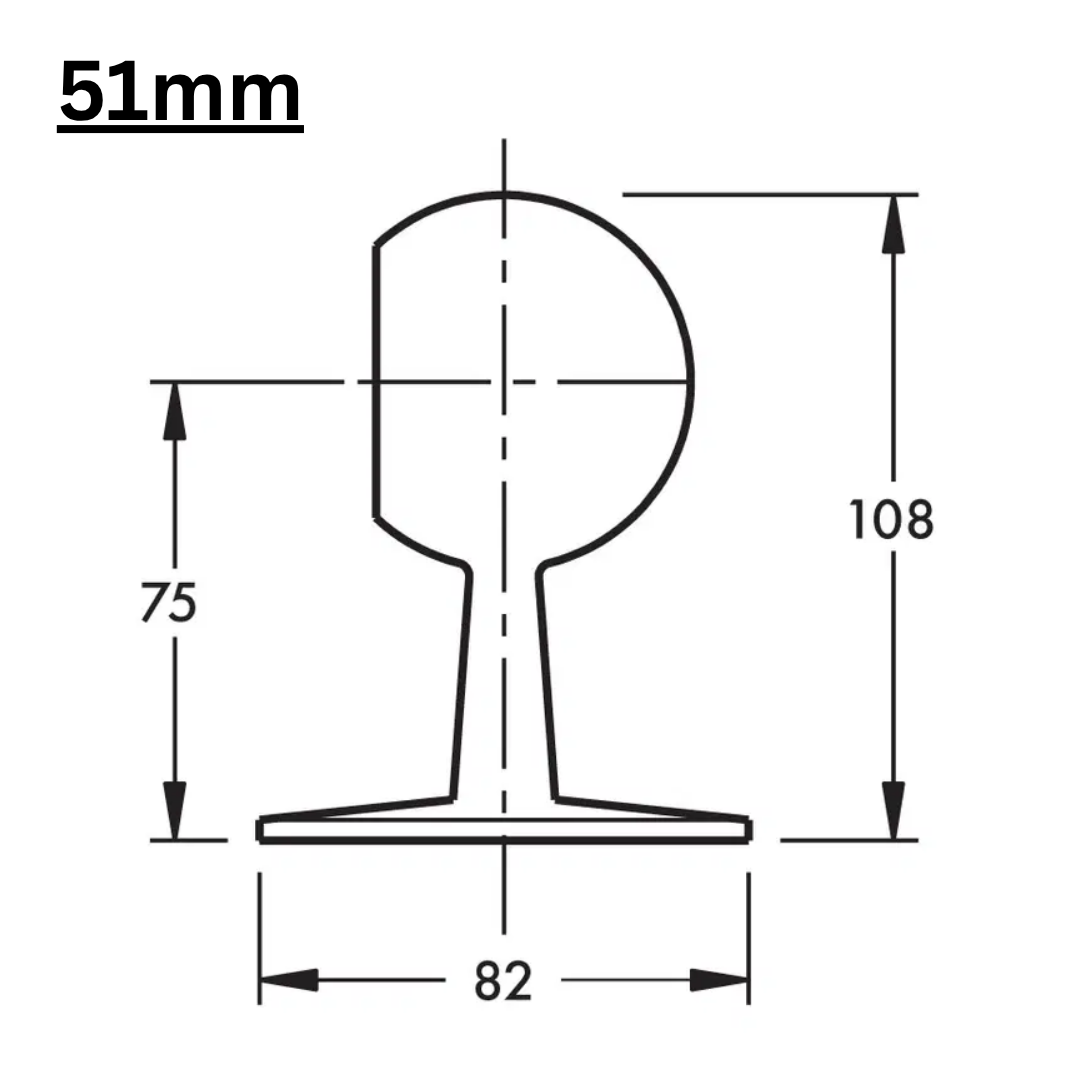

51mm

• Base diameter (A): 82mm

• Overall height (B): 108mm

• Height to centre line (C): 75mm

Compatible Products

Railing - Available in matching finishes and diameters, and can be cut to exact length to suit your installation

Ball Elbow / Ball Tee / Ball Cross - Used to create directional changes and connections within decorative rail systems while maintaining a consistent design

Lead Times

Antique finishes - made to order, dispatch in 10 - 14 working days
Standard finishes - dispatch in 3 - 5 working days
