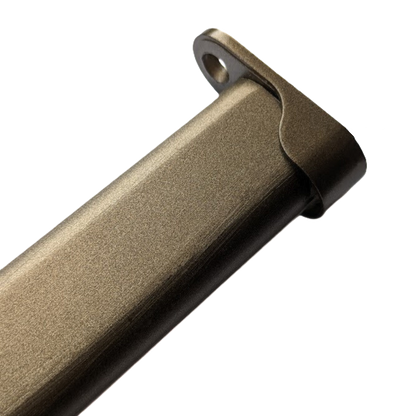

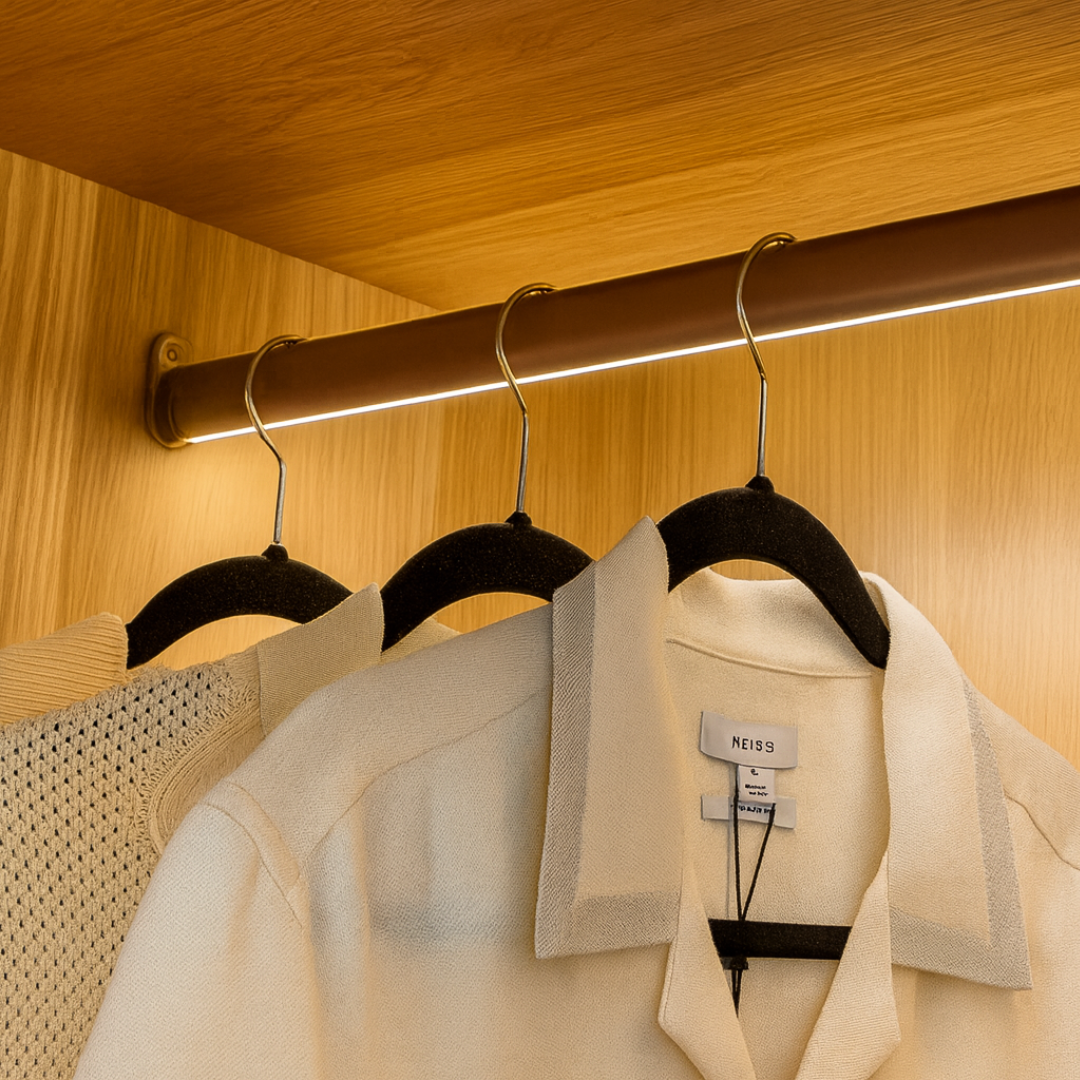

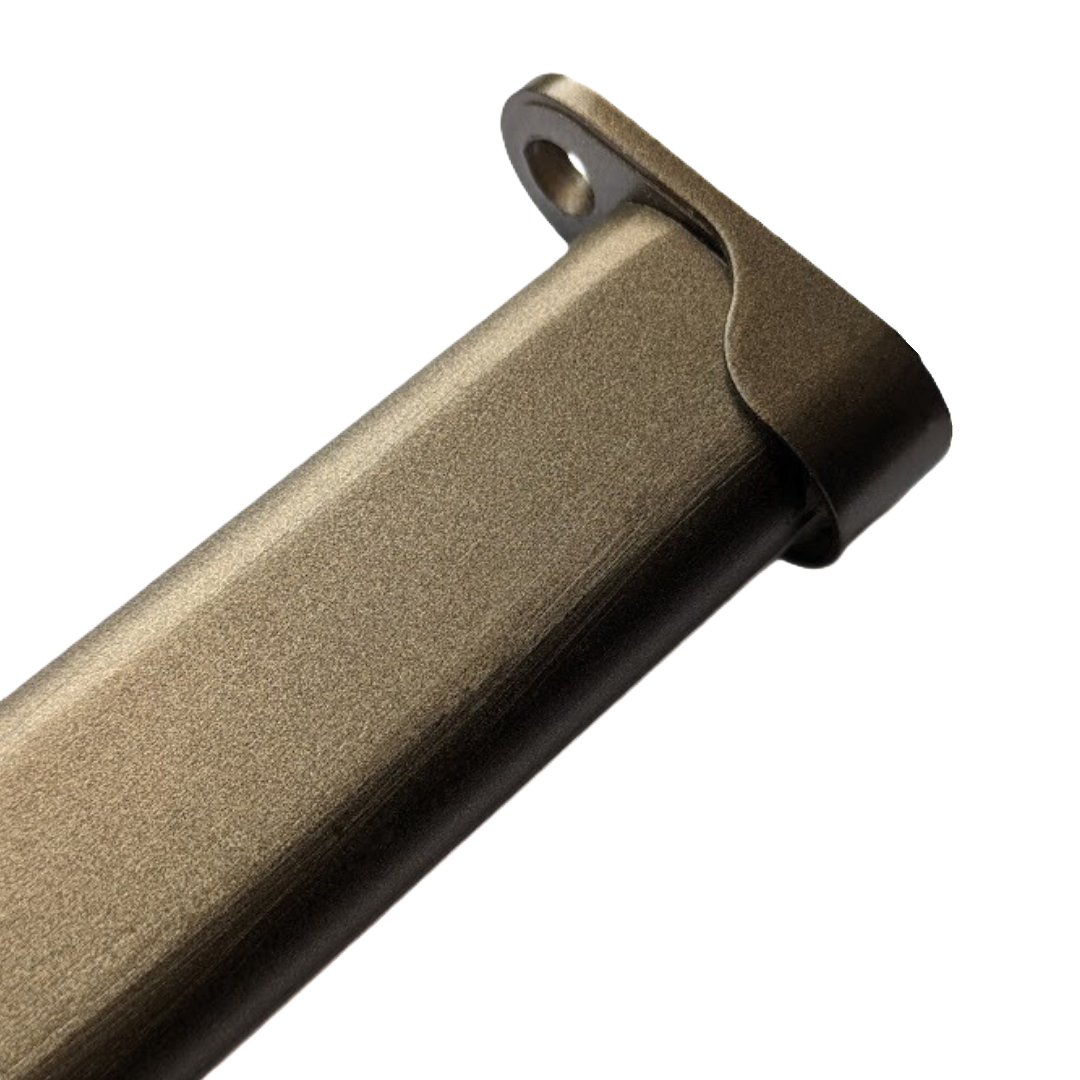

30x15mm Oval LED Wardrobe Rail

30x15mm oval integrated LED wardrobe rail that brings a luxury, showroom-level lighting effect to everyday storage. Designed as a premium decorative feature, this rail pairs a refined aluminium profile with specialist finishes and powerful integrated lighting to completely elevate how a wardrobe looks and feels.

Rail only listing - supplied in standard set lengths. If you require specific cut lengths, please contact us at sales@william-hopkins.co.uk before ordering, as once lights are installed the rail length cannot be changed.

Ideal for homeowners upgrading their wardrobes, as well as designers and trade professionals specifying high end interiors, this system delivers clean lines, strong light output, and a truly bespoke feel. A 25mm round profile LED rail is also available as an alternative option, offered at the same price and in the same finishes.

Learn more about our LED wardrobe rail system, available finishes, and compatible components here https://www.william-hopkins.co.uk/pages/motion-activated-led-wardrobe-rail

Key features

• 30x15mm oval premium LED wardrobe rail
• Rail only - available with or without integrated LED strip
• Luxury decorative solution for illuminated wardrobes
• Powerful lighting designed to illuminate the full wardrobe interior - not accent only

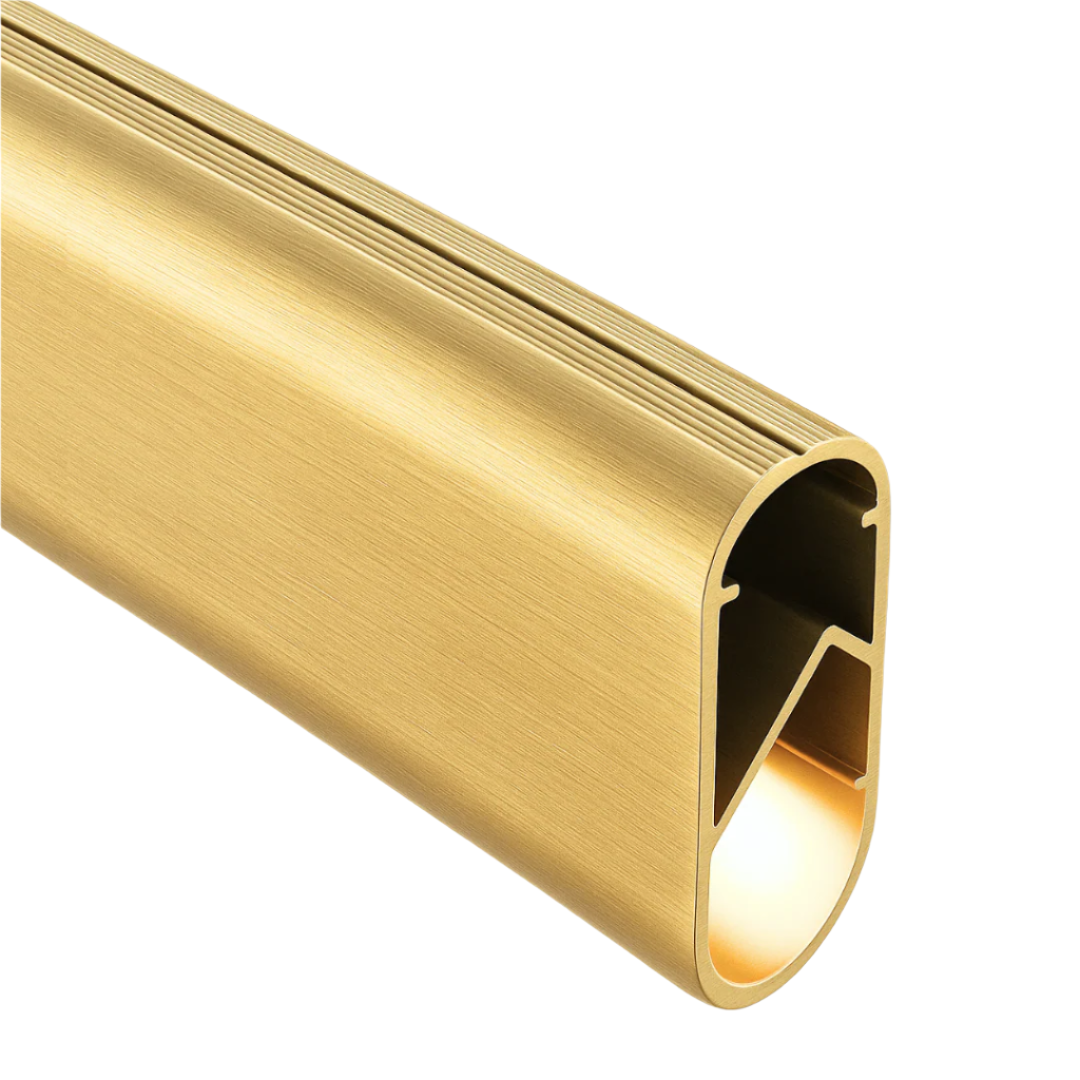

• Premium grade aluminium profile with diffuser
• Clean, modern 30x15mm oval profile or 25mm round profile available
• Available in Sunset Brass, Sunrise Brass, Satin Brass, and Midnight Bronze with all finishes priced the same
• 4000K natural white light as standard - 3000K warm white available on request
• Compatible with matching oval brackets and sockets - concealed fix and face fix options available
• Suitable for both retail customers and trade projects

Typical uses

• Luxury wardrobe hanging rails
• Dressing room installations
• Bespoke fitted furniture
• High end cabinetry projects
• Interior design and joinery schemes
• Feature storage where lighting and finish both matter

Lengths and sizing

• Supplied in standard set lengths - 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
• Maximum single rail length is 2000mm
• Rail only - complementary components for the lighting system are sold separately
  If you need exact custom lengths, contact us for a tailored quote as once the LED strips are installed, rails cannot be shortened. We strongly advise confirming sizes with us before ordering where possible.

System and component guidance

Each LED rail connects to a door sensor using the cable lead from the integrated LED strip. Sensor options are available for single door wardrobes, double door wardrobes, and walk in wardrobes using room motion detection where required.

The sensors operate using an infra red beam. When the beam is interrupted - for example when a wardrobe door is opened - the LED rail illumination is automatically triggered.

Sensors are supplied with multi port connection blocks, allowing several rails to be connected to a single sensor. For example, in a double door wardrobe with more than one illuminated rail, all rails can be connected to one double door sensor. If either door is opened, all connected LED rails will switch on together.

Sensors then connect to an LED driver. The driver size required depends on the total combined length of LED rails being powered.

Drivers are available in 8W, 15W, 30W, and 50W ratings. As a simple guide, calculate the total metres of connected LED rail and multiply by 9.6 to determine the minimum driver wattage required.

Example - a double door wardrobe with four 1 metre rails equals 4 metres total.
4 x 9.6 = 38.4W, so a 50W driver would be required.

The driver must then be wired to the mains supply or fitted with a plug top and plugged in. Plug tops are not supplied.

We are happy to advise the correct sensor and driver configuration for your specific layout. Cable extensions are also available in 2000mm lengths where longer routing is needed.

Example configuration - typical single door wardrobe

For a standard single door wardrobe with two illuminated oval rails positioned one above the other:

• 2 x 500mm 30x15mm oval LED rails with integrated lighting in Sunrise Brass
• 1 x single door infra red sensor
• 1 x 15W LED driver
• 2 x concealed fix oval end sockets in Sunrise Brass

Driver calculation example:
0.5m + 0.5m = 1 metre total LED rail length
1 x 9.6 = 9.6W required
A 15W driver would therefore be suitable.

No centre brackets are typically required for shorter lengths. As a general guide, additional support is recommended for rail lengths over 1000mm. However, this depends on the intended hanging weight and the strength of the surface the sockets are fixed to.

We are happy to confirm the correct configuration for your wardrobe layout.

Lead times

• Without lighting installation - typically 1 - 2 working weeks

• With lighting installation - typically 2 - 4 working weeks

• We always aim to dispatch sooner where possible

For tailored quotes, layout advice, or help specifying the correct driver and sensors, contact sales@william-hopkins.co.uk or call 0121 333 3577.
